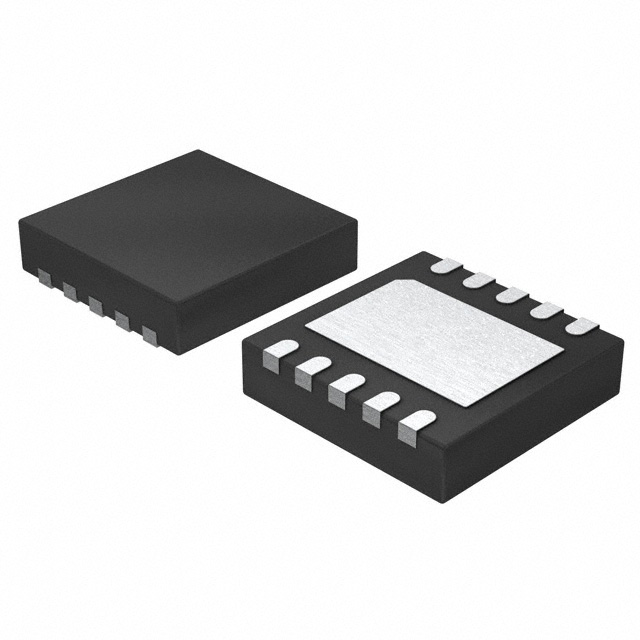

ISL97701IRZ Renesas Electronics Corporation
Favorite
Compare
Manufacturer:
Renesas Electronics Corporation
MFR Product Number:
ISL97701IRZ
Product Number:
ISL97701IRZ
MFR Standard Lead Time:
18 Weeks
Package/Case:
10-VFDFN Exposed Pad
Detailed Description:
IC REG BOOST ADJ 1.2A 10DFN
Datasheet:
Descnt:
Boost Switching Regulator IC Positive Adjustable 4.3V 1 Output 1.2A (Switch) 10-VFDFN Exposed Pad
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Renesas Electronics Corporation
Series
-
Packaging
Tube
Part Status
Active
Function
Step-Up
Output Configuration
Positive
Topology
Boost
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
2.3V
Voltage - Input (Max)
5.5V
Voltage - Output (Min/Fixed)
4.3V
Voltage - Output (Max)
28V
Current - Output
1.2A (Switch)
Frequency - Switching
1MHz
Synchronous Rectifier
No
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
10-VFDFN Exposed Pad
Supplier Device Package
10-DFN (3x3)
Base Product Number
ISL97701
-
Documents & Media
Datasheets
PCN Design/Specification
DFN/QFN Copper Wire Bond Wire 25/Oct/2013
Bond Wire Material 13/Mar/2013
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
100
-
