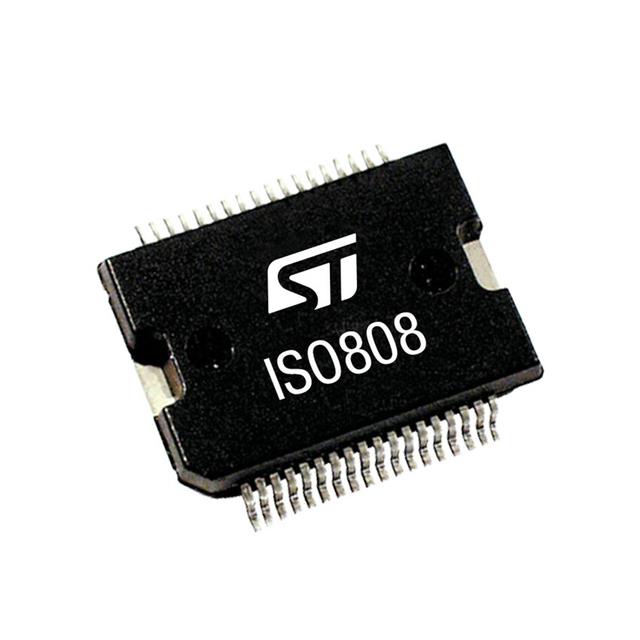

ISO808TR-1 STMicroelectronics
Favorite
Compare
Manufacturer:
STMicroelectronics
MFR Product Number:
ISO808TR-1
Product Number:
ISO808TR-1
MFR Standard Lead Time:
25 Weeks
Package/Case:
36-PowerBSSOP (0.433\, 11.00mm Width)
Detailed Description:
GALVANIC ISOLATED OCTAL HIGH-SID
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 1A PowerSO-36, Bottom Pad
In Stock
273
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
STMicroelectronics
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
Relay, Solenoid Driver
Number of Outputs
8
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
Parallel
Voltage - Load
9.2V ~ 36V
Voltage - Supply (Vcc/Vdd)
2.75V ~ 5.5V
Current - Output (Max)
1A
Rds On (Typ)
125mOhm
Input Type
CMOS
Features
Auto Restart, Status Flag, Watchdog Timer
Fault Protection
Current Limiting (Fixed), Over Voltage, Over Temperature, Reverse Battery, Short Circuit, UVLO
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
PowerSO-36, Bottom Pad
Package / Case
36-PowerBSSOP (0.433", 11.00mm Width)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
600
