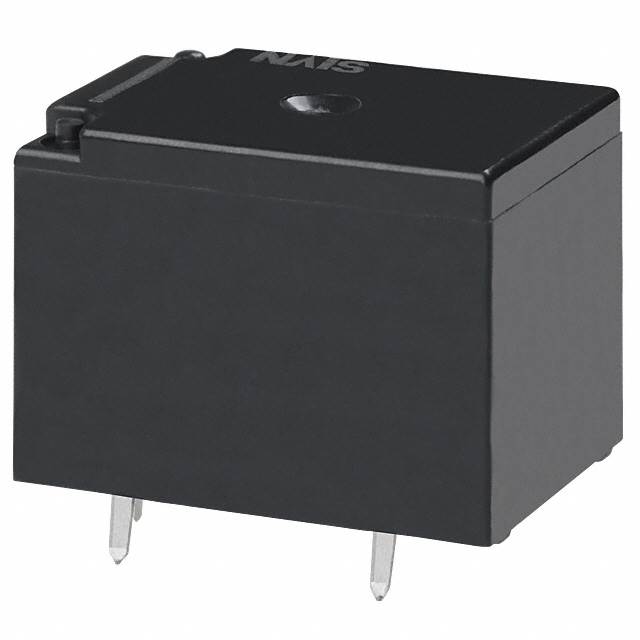

JSM1-9V-4 Panasonic Electric Works
Favorite
Compare
Manufacturer:
Panasonic Electric Works
MFR Product Number:
JSM1-9V-4
Product Number:
JSM1-9V-4
MFR Standard Lead Time:
Package/Case:
Detailed Description:
RELAY AUTOMOTIVE SPDT 10A 9V
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Panasonic Electric Works
Series
JS-M
Packaging
Bulk
Part Status
Obsolete
Coil Type
Non Latching
Coil Current
71.4 mA
Coil Voltage
9VDC
Contact Form
SPDT (1 Form C)
Contact Rating (Current)
10 A
Switching Voltage
16VDC - Max
Must Operate Voltage
4.7 VDC
Must Release Voltage
0.7 VDC
Operate Time
10 ms
Release Time
10 ms
Features
Sealed - Fully
Mounting Type
Through Hole
Termination Style
PC Pin
Operating Temperature
-40°C ~ 85°C
Contact Material
Silver Alloy, Cadmium Free
Coil Power
640mW
Coil Resistance
126 Ohms
Base Product Number
JSM1
Documents & Media
Other Related Documents
How to Read Date Codes
General Appl Guidelines
Video File
Relay Basics - Another Teaching Moment | DigiKey Electronics
How to Choose a Relay - Another Teaching Moment
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8536.41.0020
Additional Resources
Other Names
JSM1-9V-4-NDR
Standard Package
100
