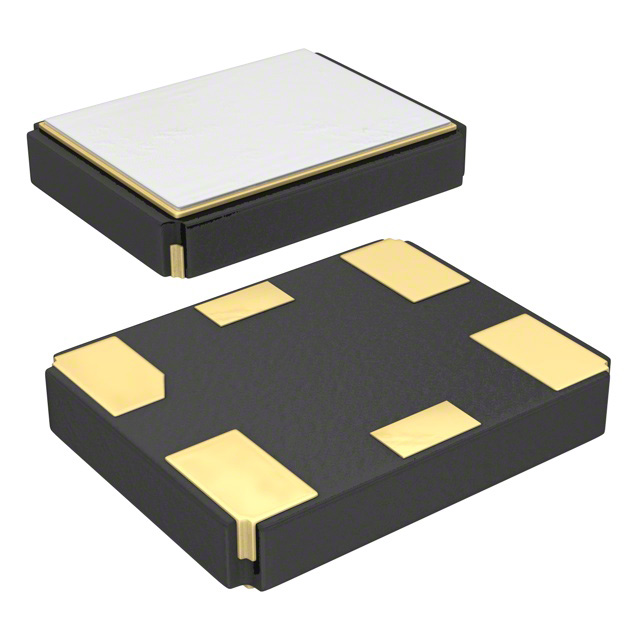

KT2520F16369ACW28TAK KYOCERA AVX
Favorite
Compare
Manufacturer:
KYOCERA AVX
MFR Product Number:
KT2520F16369ACW28TAK
Product Number:
KT2520F16369ACW28TAK
MFR Standard Lead Time:
Package/Case:
6-SMD, No Lead
Detailed Description:
XTAL OSC TCXO 16.3690MHZ SNWV
Datasheet:
Descnt:
16.369 MHz TCXO Clipped Sine Wave Oscillator 2.8V Enable/Disable 6-SMD, No Lead
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
KYOCERA AVX
Series
KT2520F
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Base Resonator
Crystal
Type
TCXO
Frequency
16.369 MHz
Function
Enable/Disable
Output
Clipped Sine Wave
Voltage - Supply
2.8V
Frequency Stability
±500ppb
Absolute Pull Range (APR)
-
Operating Temperature
-30°C ~ 85°C
Current - Supply (Max)
2mA
Ratings
-
Mounting Type
Surface Mount
Package / Case
6-SMD, No Lead
Size / Dimension
0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)
0.031" (0.80mm)
Current - Supply (Disable) (Max)
-
Documents & Media
PCN Obsolescence/ EOL
KT2520F Series 20/Sep/2018
Mult Devs 23/Nov/2020
-
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
