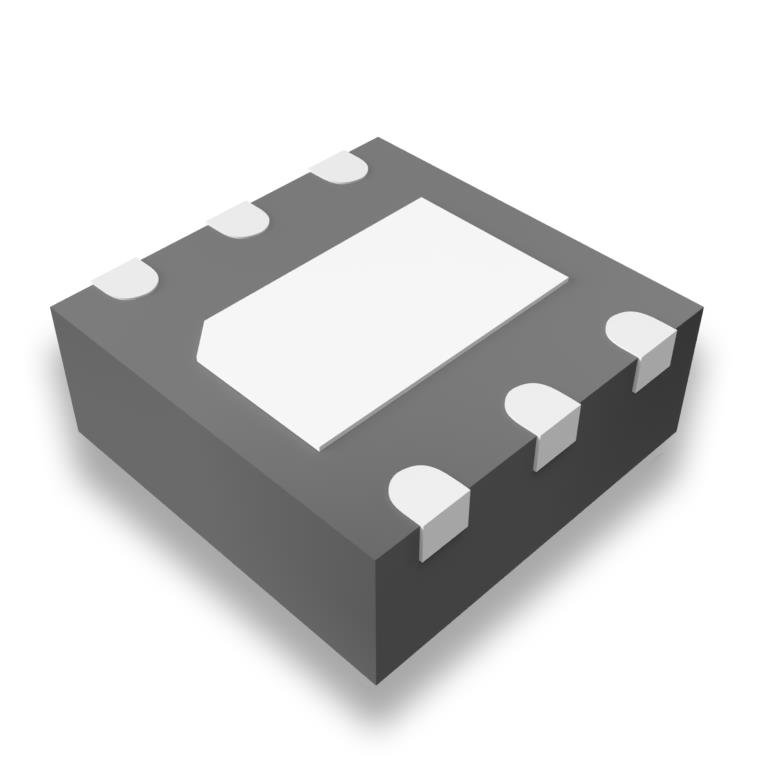

KTD2801ECD-TR Kinetic Technologies
Favorite
Compare
Manufacturer:
Kinetic Technologies
MFR Product Number:
KTD2801ECD-TR
Product Number:
KTD2801ECD-TR
MFR Standard Lead Time:
16 Weeks
Package/Case:
6-WDFN Exposed Pad
Detailed Description:
36V/30V/24V STEP-UP LED DRIVER W
Datasheet:
Descnt:
LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM, Single-Wire Dimming 520mA 6-TDFN (2x2)
In Stock
8802
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Kinetic Technologies
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
DC DC Regulator
Topology
Step-Up (Boost)
Internal Switch(s)
Yes
Number of Outputs
1
Voltage - Supply (Min)
2.7V
Voltage - Supply (Max)
5.5V
Voltage - Output
0.2V ~ 36V
Current - Output / Channel
520mA
Frequency
1MHz
Dimming
PWM, Single-Wire
Applications
Backlight
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
6-WDFN Exposed Pad
Supplier Device Package
6-TDFN (2x2)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
