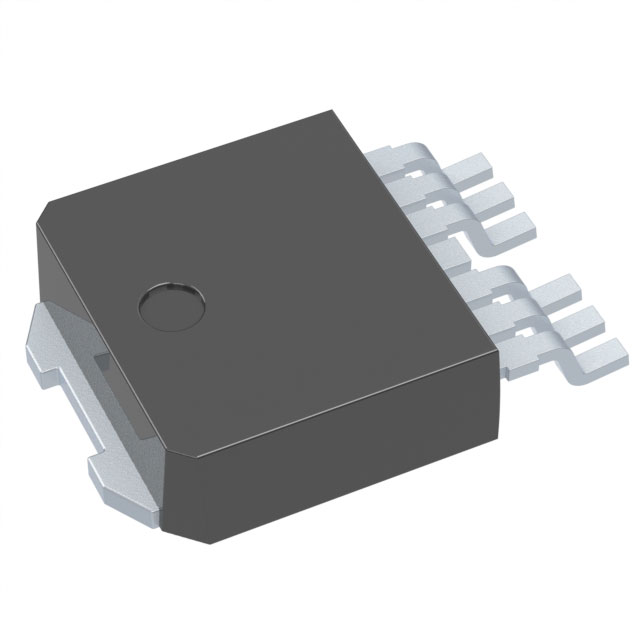

L5300AH7TR STMicroelectronics
Favorite
Compare
Manufacturer:
STMicroelectronics
MFR Product Number:
L5300AH7TR
Product Number:
L5300AH7TR
MFR Standard Lead Time:
26 Weeks
Package/Case:
TO-252-7, DPAK (6 Leads + Tab)
Detailed Description:
IC REG LINEAR 5V 300MA 6HPAK
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 6-HPAK
In Stock
2228
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
STMicroelectronics
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Positive
Output Type
Fixed
Number of Regulators
1
Voltage - Input (Max)
40V
Voltage - Output (Min/Fixed)
5V
Voltage - Output (Max)
-
Voltage Dropout (Max)
0.5V 300mA
Current - Output
300mA
Current - Quiescent (Iq)
80 µA
Current - Supply (Max)
4.2 mA
PSRR
60dB (100Hz)
Control Features
Enable, Reset
Protection Features
Over Temperature, Short Circuit
Operating Temperature
-40°C ~ 150°C
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount
Package / Case
TO-252-7, DPAK (6 Leads + Tab)
Supplier Device Package
6-HPAK
Base Product Number
L5300
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,500
