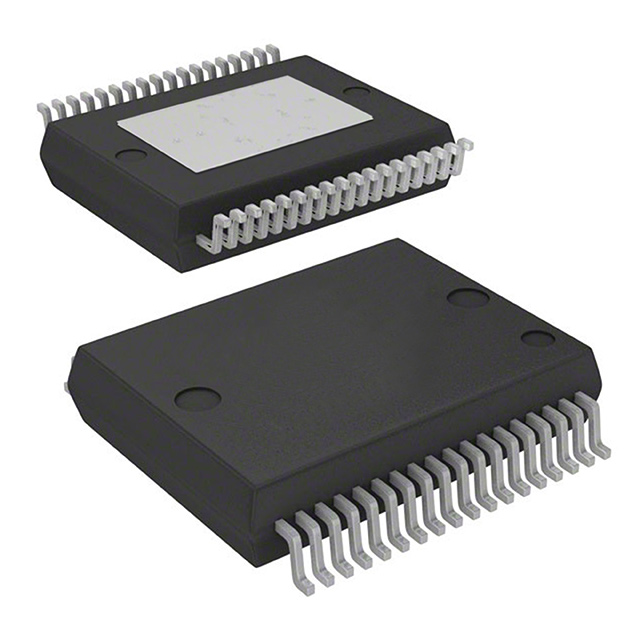

L5963DN-EHT STMicroelectronics
Favorite
Compare
Manufacturer:
STMicroelectronics
MFR Product Number:
L5963DN-EHT
Product Number:
L5963DN-EHT
MFR Standard Lead Time:
36 Weeks
Package/Case:
36-PowerFSOP (0.295\, 7.50mm Width)
Detailed Description:
IC REG TRP BCK/LNR SYNC PWRSSO36
Datasheet:
Descnt:
PMIC - Voltage Regulators - Linear Switching 3 Output Step-Down (Buck) Synchronous (2), Linear (LDO) (1) 250kHz ~ 2MHz PowerSSO-36 EPU
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
STMicroelectronics
Series
-
Packaging
Tape & Reel (TR)
Part Status
Active
Topology
Step-Down (Buck) Synchronous (2), Linear (LDO) (1)
Number of Outputs
3
Frequency - Switching
250kHz ~ 2MHz
Voltage/Current - Output 1
Programmable, 2.5A
Voltage/Current - Output 2
Programmable, 3A
Voltage/Current - Output 3
Programmable, 250mA
w/LED Driver
No
w/Supervisor
Yes
w/Sequencer
Yes
Voltage - Supply
3.5V ~ 26V
Operating Temperature
-40°C ~ 105°C
Mounting Type
Surface Mount
Package / Case
36-PowerFSOP (0.295", 7.50mm Width)
Supplier Device Package
PowerSSO-36 EPU
Base Product Number
L5963
-
Documents & Media
Datasheets
L5963 Datasheet
Automotive Multichannel Power Mgmt Ics
Pwr Amplifiers/Voltage Regulators for Car Audio Guide
HTML Datasheet
L5963 Datasheet
Automotive Multichannel Power Mgmt Ics
Pwr Amplifiers/Voltage Regulators for Car Audio Guide
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
1,000
-
