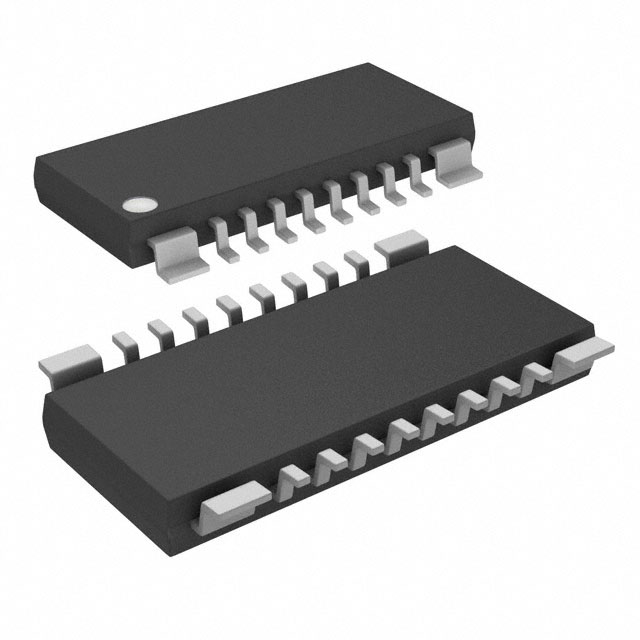

LB1205M-MPB-E onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
LB1205M-MPB-E
Product Number:
LB1205M-MPB-E
MFR Standard Lead Time:
Package/Case:
16-LSOP (0.213\, 5.40mm Width) + 4 Heat Tabs
Detailed Description:
IC PWR DRVR DARLINGTON 1:1 16MFP
Datasheet:
Descnt:
Power Switch/Driver 1:1 Darlington 1.5A 16-MFPFS
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
onsemi
Series
-
Packaging
Tube
Part Status
Obsolete
Switch Type
General Purpose
Number of Outputs
4
Ratio - Input:Output
1:1
Output Configuration
Low Side
Output Type
Darlington
Interface
-
Voltage - Load
3.5V ~ 7V
Voltage - Supply (Vcc/Vdd)
-
Current - Output (Max)
1.5A
Rds On (Typ)
-
Input Type
Non-Inverting
Features
-
Fault Protection
-
Operating Temperature
-20°C ~ 75°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
16-MFPFS
Package / Case
16-LSOP (0.213", 5.40mm Width) + 4 Heat Tabs
Base Product Number
LB1205
Documents & Media
Environmental Information
onsemi RoHS
onsemi REACH
-
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
40
