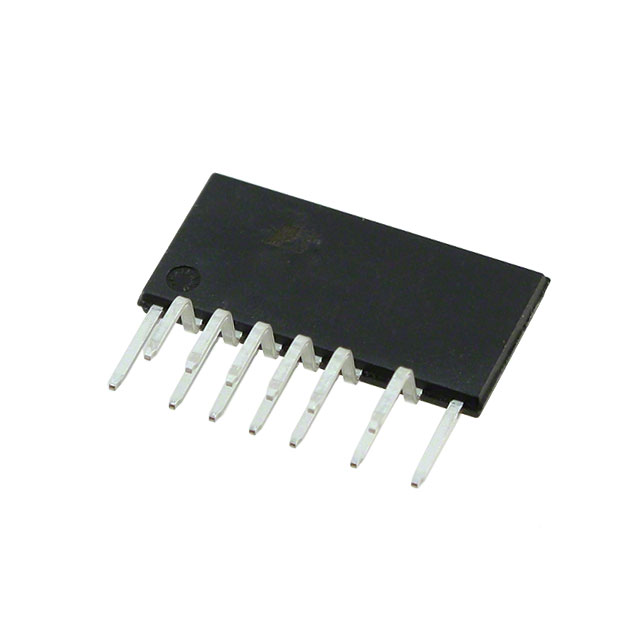

LCS703HG Power Integrations
Favorite
Compare
Manufacturer:
Power Integrations
MFR Product Number:
LCS703HG
Product Number:
LCS703HG
MFR Standard Lead Time:
16 Weeks
Package/Case:
16-SSIP, 13 Leads, Exposed Pad, Formed Leads
Detailed Description:
IC HALF BRIDGE DRIVER ESIP16J
Datasheet:
Descnt:
Half Bridge Driver General Purpose Power MOSFET eSIP-16J
In Stock
3891
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Power Integrations
Series
HiperLCS™
Packaging
Tube
Part Status
Active
Output Configuration
Half Bridge
Applications
General Purpose
Interface
On/Off
Load Type
Inductive
Technology
Power MOSFET
Rds On (Typ)
600mOhm
Current - Output / Channel
-
Current - Peak Output
12.9A
Voltage - Supply
11.4V ~ 15V
Voltage - Load
11.4V ~ 15V
Operating Temperature
-40°C ~ 150°C (TJ)
Features
Auto Restart, Slew Rate Controlled
Fault Protection
Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting Type
Through Hole
Package / Case
16-SSIP, 13 Leads, Exposed Pad, Formed Leads
Supplier Device Package
eSIP-16J
Base Product Number
LCS703
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
596-1432-5
Standard Package
30
