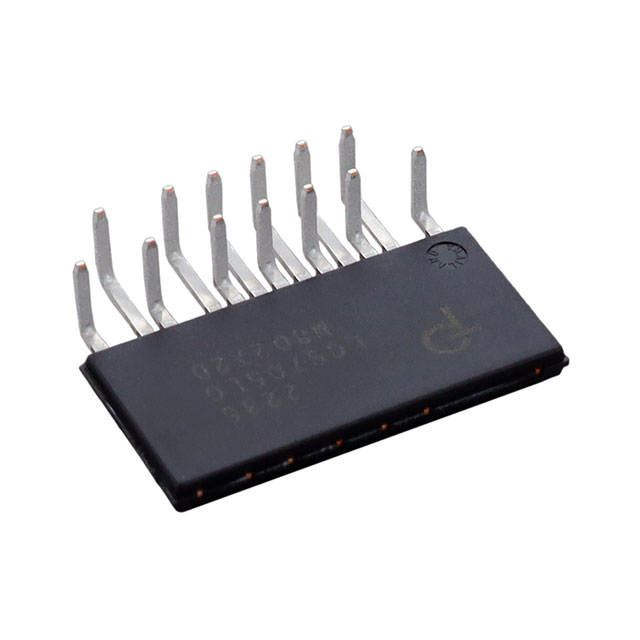

LCS705LG Power Integrations
Favorite
Compare
Manufacturer:
Power Integrations
MFR Product Number:
LCS705LG
Product Number:
LCS705LG
MFR Standard Lead Time:
18 Weeks
Package/Case:
16-SSIP, 13 Leads, Exposed Pad, Formed Leads
Detailed Description:
IC HALF BRIDGE DRIVER ESIP16K
Datasheet:
Descnt:
Half Bridge (2) Driver General Purpose Power MOSFET eSIP-16K
In Stock
3850
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Power Integrations
Series
-
Packaging
Tube
Part Status
Active
Output Configuration
Half Bridge (2)
Applications
General Purpose
Interface
Analog, Logic
Load Type
Inductive, Capacitive, Resistive
Technology
Power MOSFET
Rds On (Typ)
400mOhm
Current - Output / Channel
-
Current - Peak Output
-
Voltage - Supply
11.4V ~ 15V
Voltage - Load
11.4V ~ 15V
Operating Temperature
-40°C ~ 150°C (TJ)
Features
Bootstrap Circuit, Internal Oscillator
Fault Protection
Current Limiting, Over Current, Over Temperature, Over Voltage, UVLO
Mounting Type
Through Hole
Package / Case
16-SSIP, 13 Leads, Exposed Pad, Formed Leads
Supplier Device Package
eSIP-16K
Base Product Number
LCS705
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
596-LCS705LG
Standard Package
30
