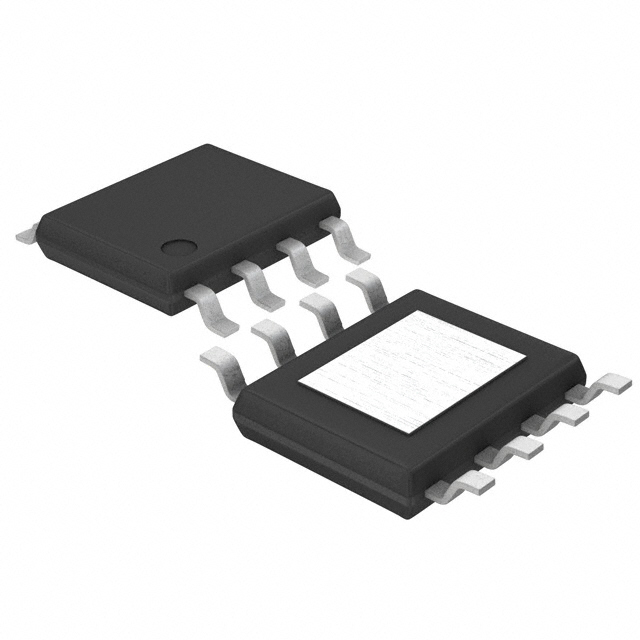

LED5000PHR STMicroelectronics
Favorite
Compare
Manufacturer:
STMicroelectronics
MFR Product Number:
LED5000PHR
Product Number:
LED5000PHR
MFR Standard Lead Time:
18 Weeks
Package/Case:
8-SOIC (0.154\, 3.90mm Width) Exposed Pad
Detailed Description:
IC LED DRIVER RGLTR PWM 3A 8HSOP
Datasheet:
Descnt:
LED Driver IC 1 Output DC DC Regulator Step-Down (Buck), Step-Up (Boost) PWM Dimming 3A 8-HSOP
In Stock
27728
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
STMicroelectronics
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
DC DC Regulator
Topology
Step-Down (Buck), Step-Up (Boost)
Internal Switch(s)
Yes
Number of Outputs
1
Voltage - Supply (Min)
5.5V
Voltage - Supply (Max)
48V
Voltage - Output
-
Current - Output / Channel
3A
Frequency
850kHz
Dimming
PWM
Applications
Lighting, Signage
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package
8-HSOP
Base Product Number
LED5000
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,500
