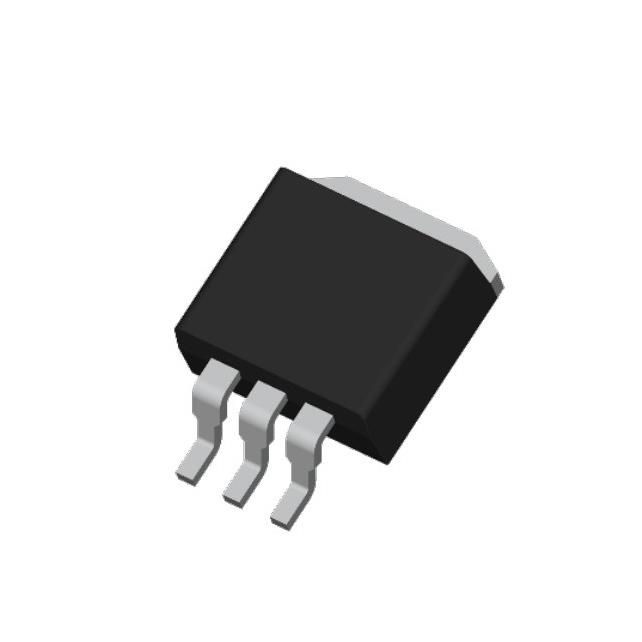

LM1085R-ADJ TAEJIN
Favorite
Compare
Manufacturer:
TAEJIN
MFR Product Number:
LM1085R-ADJ
Product Number:
LM1085R-ADJ
MFR Standard Lead Time:
Package/Case:
TO-263-4, D2PAK (3 Leads + Tab), TO-263AA
Detailed Description:
IC REG LINEAR ADJ 3A TO263-3
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable 1 Output 3A TO-263-3
In Stock
11883
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
TAEJIN
Series
-
Packaging
Tape & Reel (TR)
Part Status
Active
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
15V
Voltage - Output (Min/Fixed)
1.25V
Voltage - Output (Max)
15V
Voltage Dropout (Max)
1.5V 3A
Current - Output
3A
Current - Quiescent (Iq)
90 µA
Current - Supply (Max)
10 mA
PSRR
65dB (120Hz)
Control Features
-
Protection Features
Over Current, Over Temperature, Short Circuit
Operating Temperature
-40°C ~ 125°C (TJ)
Grade
-
Qualification
-
Mounting Type
Surface Mount
Package / Case
TO-263-4, D2PAK (3 Leads + Tab), TO-263AA
Supplier Device Package
TO-263-3
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.1000
Additional Resources
Other Names
5536-LM1085R-ADJTR
Standard Package
800
