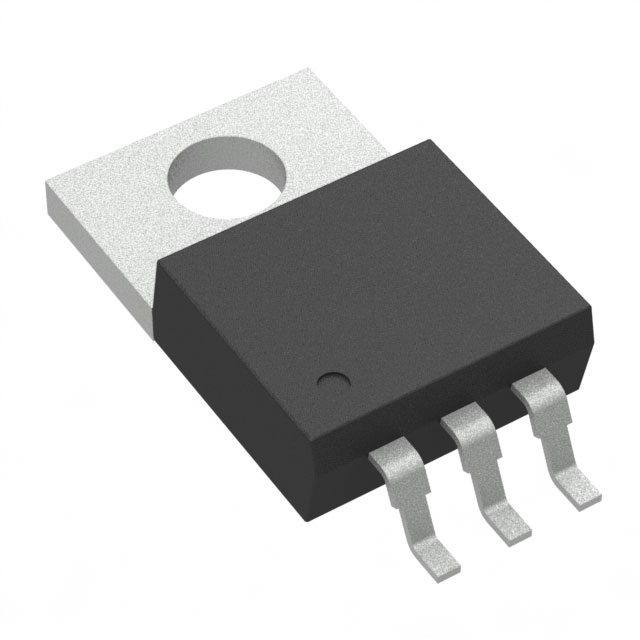

LM2940T-5.0/LF08 Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
LM2940T-5.0/LF08
Product Number:
LM2940T-5-0-LF08
MFR Standard Lead Time:
6 Weeks
Package/Case:
TO-220-3 Formed Leads
Detailed Description:
IC REG LINEAR 5V 1A TO220-3
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-220-3
In Stock
2380
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tube
Part Status
Active
Output Configuration
Positive
Output Type
Fixed
Number of Regulators
1
Voltage - Input (Max)
26V
Voltage - Output (Min/Fixed)
5V
Voltage - Output (Max)
-
Voltage Dropout (Max)
1V 1A
Current - Output
1A
Current - Quiescent (Iq)
10 mA
Current - Supply (Max)
15 mA
PSRR
64dB (120Hz)
Control Features
-
Protection Features
Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
TO-220-3 Formed Leads
Supplier Device Package
TO-220-3
Base Product Number
LM2940
Documents & Media
Datasheets
LM2940-N, 2940C Datasheet
TO-220 Leadbend Options
Other Related Documents
HTML Datasheet
LDOs Quick Reference Guide
LM2940-N, 2940C Datasheet
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
45
