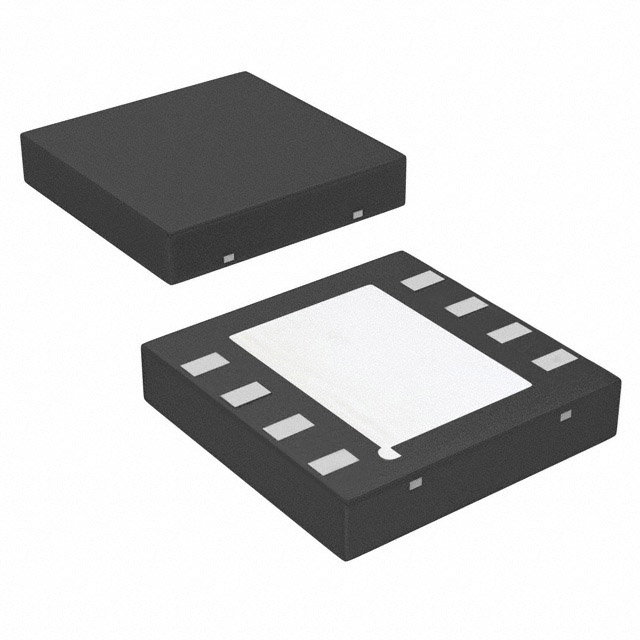

LM2941LDX Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
LM2941LDX
Product Number:
LM2941LDX
MFR Standard Lead Time:
Package/Case:
8-WDFN Exposed Pad
Detailed Description:
IC REG LINEAR POS ADJ 1A 8WSON
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable 1 Output 1A 8-WSON (4x4)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Obsolete
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
26V
Voltage - Output (Min/Fixed)
5V
Voltage - Output (Max)
20V
Voltage Dropout (Max)
1V 1A
Current - Output
1A
Current - Quiescent (Iq)
10 mA
Current - Supply (Max)
15 mA
PSRR
-
Control Features
Enable
Protection Features
Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
8-WDFN Exposed Pad
Supplier Device Package
8-WSON (4x4)
Base Product Number
LM2941
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
4,500
