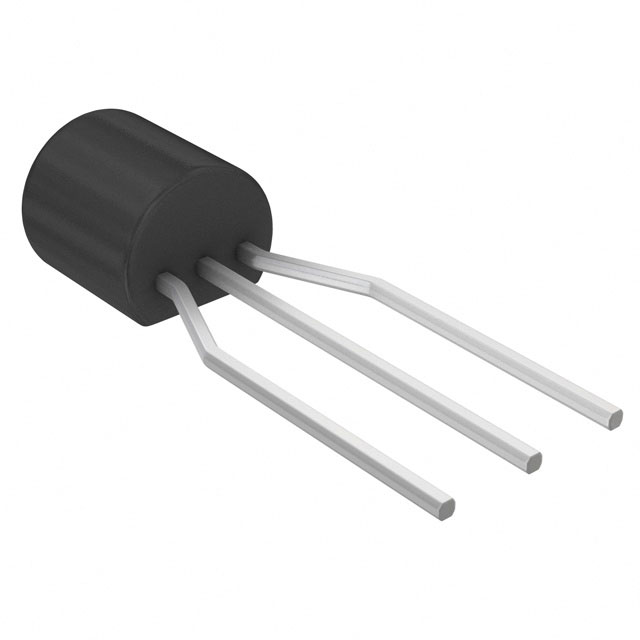

LM336Z-2.5#TRPBF Analog Devices Inc.
Favorite
Compare
Manufacturer:
Analog Devices Inc.
MFR Product Number:
LM336Z-2.5#TRPBF
Product Number:
LM336Z-2-5-TRPBF
MFR Standard Lead Time:
10 Weeks
Package/Case:
TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Detailed Description:
IC VREF SHUNT 0.48% TO92-3
Datasheet:
Descnt:
Shunt Voltage Reference IC Fixed 2.49V V ±0.48% 15 mA TO-92-3
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Analog Devices Inc.
Series
-
Packaging
Tape & Reel (TR)
Part Status
Active
Reference Type
Shunt
Output Type
Fixed
Voltage - Output (Min/Fixed)
2.49V
Current - Output
15 mA
Tolerance
±0.48%
Temperature Coefficient
-
Noise - 0.1Hz to 10Hz
-
Noise - 10Hz to 10kHz
-
Voltage - Input
-
Current - Supply
-
Operating Temperature
0°C ~ 70°C (TA)
Mounting Type
Through Hole
Package / Case
TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Supplier Device Package
TO-92-3
Base Product Number
LM336
-
Documents & Media
PCN Packaging
Packaging Changes 06/Mar/2022
Packaging Changes 20/Feb/2021
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,000
