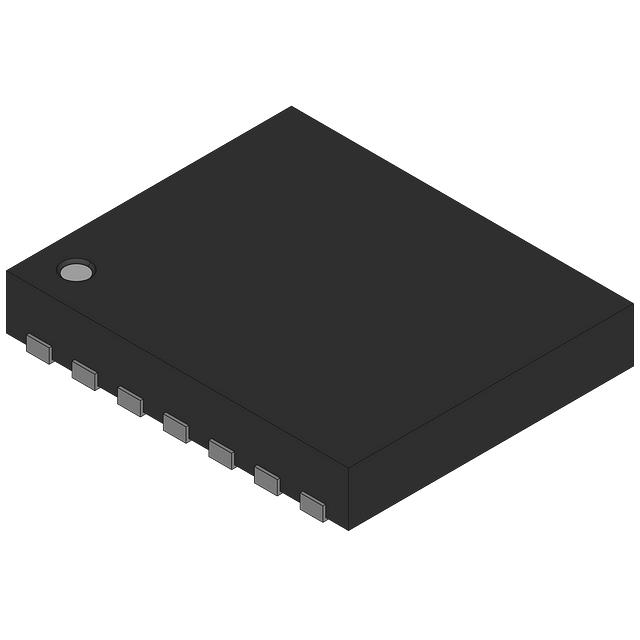

LM3520SD/NOPB National Semiconductor
Favorite
Compare
Manufacturer:
National Semiconductor
MFR Product Number:
LM3520SD/NOPB
Product Number:
LM3520SD-NOPB
MFR Standard Lead Time:
Package/Case:
14-WFDFN Exposed Pad
Detailed Description:
IC LED DRV RGLTR PWM 14WSON
Datasheet:
Descnt:
LED Driver IC 2 Output DC DC Regulator Step-Up (Boost) PWM Dimming 700mA (Switch) 14-WSON (4x3)
In Stock
1993
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
National Semiconductor
Series
-
Packaging
Bulk
Part Status
Obsolete
Type
DC DC Regulator
Topology
Step-Up (Boost)
Internal Switch(s)
Yes
Number of Outputs
2
Voltage - Supply (Min)
2.7V
Voltage - Supply (Max)
5.5V
Voltage - Output
22.5V ~ 23.2V
Current - Output / Channel
700mA (Switch)
Frequency
1.1MHz
Dimming
PWM
Applications
Backlight
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
14-WFDFN Exposed Pad
Supplier Device Package
14-WSON (4x3)
Base Product Number
LM3520
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
168
