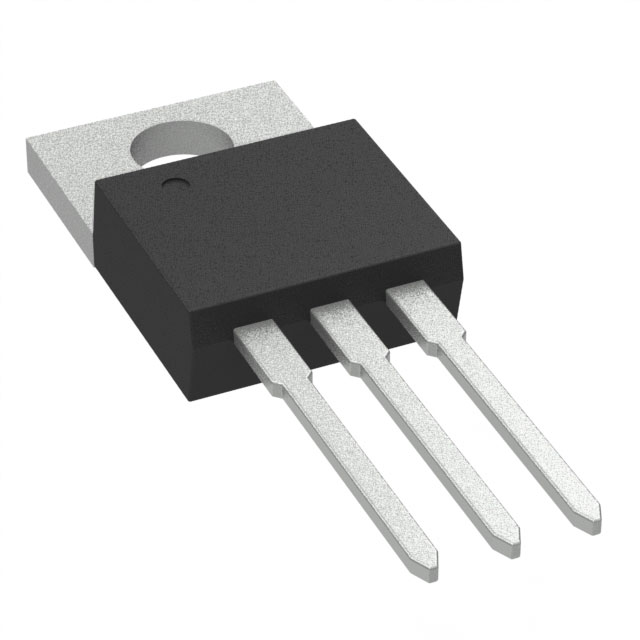

LM7912CT Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
LM7912CT
Product Number:
LM7912CT
MFR Standard Lead Time:
Package/Case:
TO-220-3
Detailed Description:
IC REG LINEAR -12V 1.5A TO220-3
Datasheet:
Descnt:
Linear Voltage Regulator IC Negative Fixed 1 Output 1.5A TO-220-3
In Stock
64
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tube
Part Status
Obsolete
Output Configuration
Negative
Output Type
Fixed
Number of Regulators
1
Voltage - Input (Max)
-35V
Voltage - Output (Min/Fixed)
-12V
Voltage - Output (Max)
-
Voltage Dropout (Max)
1.1V 1A
Current - Output
1.5A
Current - Quiescent (Iq)
1.5 mA
PSRR
70dB (120Hz)
Control Features
-
Protection Features
Over Temperature, Short Circuit
Operating Temperature
0°C ~ 125°C
Mounting Type
Through Hole
Package / Case
TO-220-3
Supplier Device Package
TO-220-3
Base Product Number
LM7912
-
Documents & Media
Featured Product
Power Management
Create your power design now with TI’s WEBENCH® Designer
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
45
