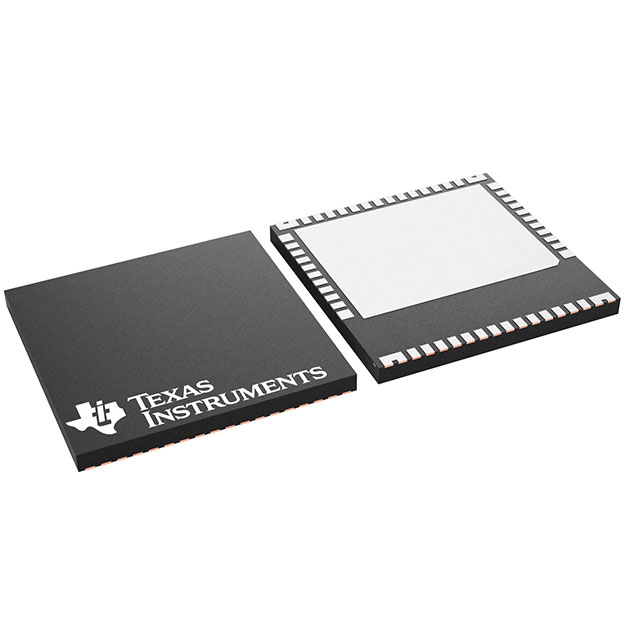

LMG3425R030RQZT Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
LMG3425R030RQZT
Product Number:
LMG3425R030RQZT
MFR Standard Lead Time:
18 Weeks
Package/Case:
54-VQFN Exposed Pad
Detailed Description:
IC HALF BRIDGE DRVR 1.2A 54VQFN
Datasheet:
Descnt:
Power Switch/Driver 1:1 N/P-Channel 40A 54-VQFN (12x12)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
Low Side
Output Type
N/P-Channel
Interface
PWM
Voltage - Load
600V
Voltage - Supply (Vcc/Vdd)
7.5V ~ 18V
Current - Output (Max)
40A
Rds On (Typ)
26mOhm
Input Type
Non-Inverting
Features
Slew Rate Controlled, Status Flag
Fault Protection
Current Limiting (Fixed), Over Temperature, UVLO
Operating Temperature
-40°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
54-VQFN (12x12)
Package / Case
54-VQFN Exposed Pad
Base Product Number
LMG3425
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Affected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
250
