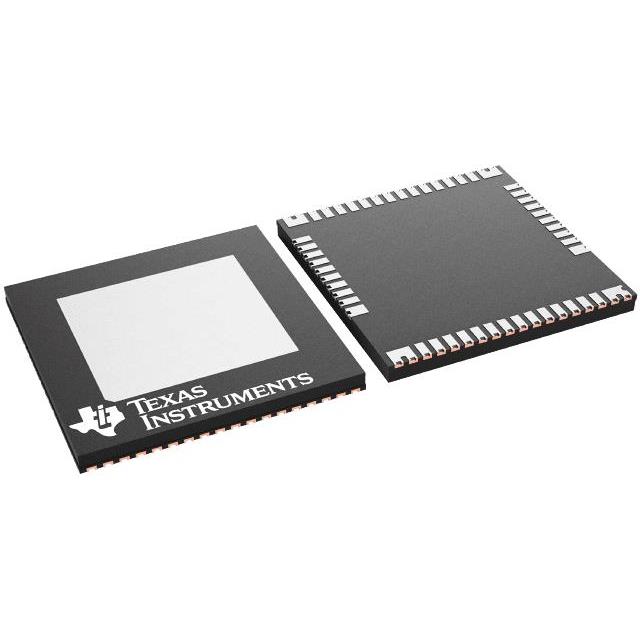

LMG3522R030QRQSRQ1 Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
LMG3522R030QRQSRQ1
Product Number:
LMG3522R030QRQSRQ1
MFR Standard Lead Time:
18 Weeks
Package/Case:
52-VQFN Exposed Pad
Detailed Description:
IC
Datasheet:
Descnt:
Power Switch/Driver 1:1 N/P-Channel 38A 52-VQFN (12x12)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
Low Side
Output Type
N/P-Channel
Interface
-
Voltage - Load
650V
Voltage - Supply (Vcc/Vdd)
7.5V ~ 18V
Current - Output (Max)
38A
Rds On (Typ)
26mOhm
Input Type
Non-Inverting
Features
Slew Rate Controlled, Status Flag
Fault Protection
Current Limiting (Fixed), Over Temperature, Short Circuit, UVLO
Operating Temperature
-40°C ~ 125°C (TA)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount, Wettable Flank
Supplier Device Package
52-VQFN (12x12)
Package / Case
52-VQFN Exposed Pad
-
Documents & Media
Additional Resources
Other Names
296-LMG3522R030QRQSRQ1TR
Standard Package
2,000
