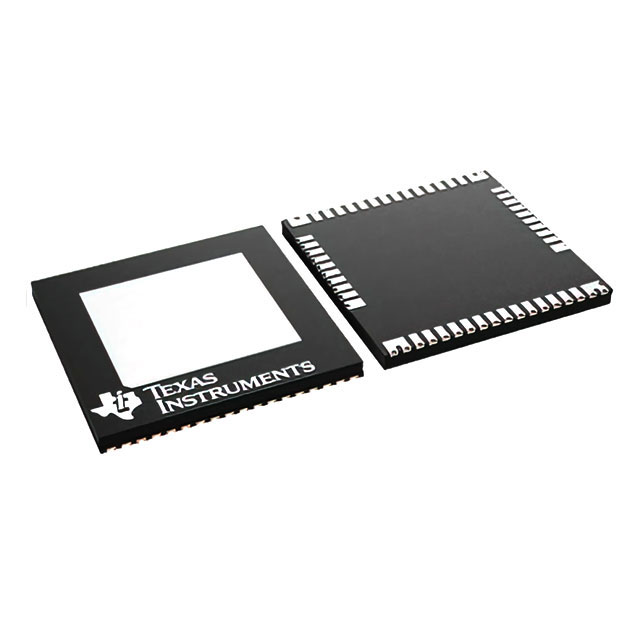

LMG3522R030RQSR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
LMG3522R030RQSR
Product Number:
LMG3522R030RQSR
MFR Standard Lead Time:
18 Weeks
Package/Case:
52-VQFN Exposed Pad
Detailed Description:
IC LOW SIDE 38A 52VQFN
Datasheet:
Descnt:
Low Side Driver DC Motors, General Purpose NMOS 52-VQFN (12x12)
In Stock
1770
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Low Side
Applications
DC Motors, General Purpose
Interface
PWM
Load Type
Inductive, Capacitive, Resistive
Technology
NMOS
Rds On (Typ)
26mOhm
Current - Output / Channel
38A
Current - Peak Output
-
Voltage - Supply
7.5V ~ 18V
Voltage - Load
650V
Operating Temperature
-40°C ~ 125°C (TJ)
Features
-
Fault Protection
Current Limiting (Adjustable), Over Temperature, Short Circuit, UVLO
Mounting Type
Surface Mount
Package / Case
52-VQFN Exposed Pad
Supplier Device Package
52-VQFN (12x12)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Affected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,000
