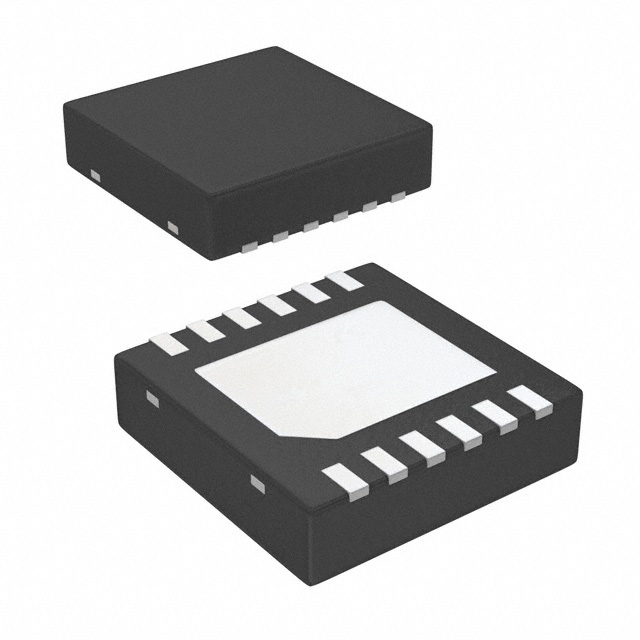

LMR38015SDRRR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
LMR38015SDRRR
Product Number:
LMR38015SDRRR
MFR Standard Lead Time:
12 Weeks
Package/Case:
12-WFDFN Exposed Pad
Detailed Description:
80V INPUT, 1.5A SYNCHRONOUS STEP
Datasheet:
Descnt:
Buck Switching Regulator IC Positive Adjustable 1 Output 1.5A 12-WFDFN Exposed Pad
In Stock
2950
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
SIMPLE SWITCHER®
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
4.2V
Voltage - Input (Max)
80V
Voltage - Output (Min/Fixed)
-
Voltage - Output (Max)
80V
Current - Output
1.5A
Frequency - Switching
200kHz ~ 2.2MHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 150°C (TJ)
Mounting Type
Surface Mount, Wettable Flank
Package / Case
12-WFDFN Exposed Pad
Supplier Device Package
12-WSON (3x3)
Base Product Number
LMR38015
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
