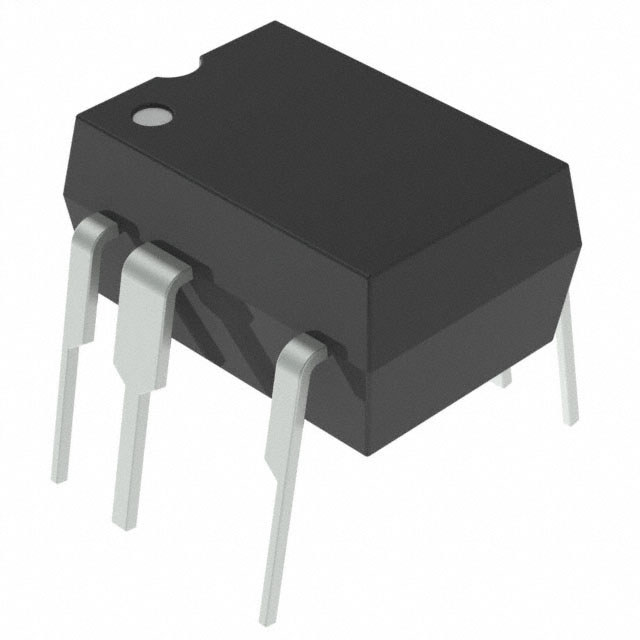

LNK3209P Power Integrations
Favorite
Compare
Manufacturer:
Power Integrations
MFR Product Number:
LNK3209P
Product Number:
LNK3209P
MFR Standard Lead Time:
8 Weeks
Package/Case:
8-DIP (0.300\, 7.62mm), 7 Leads
Detailed Description:
600 MA (MDCM) 1000 MA (CCM)
Datasheet:
Descnt:
Converter Offline Buck, Buck-Boost, Flyback Topology 66kHz 8-PDIP-C
In Stock
1543
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Power Integrations
Series
LinkSwitch®-TN2
Packaging
Tube
Part Status
Active
Output Isolation
Non-Isolated
Internal Switch(s)
Yes
Voltage - Breakdown
725V
Topology
Buck, Buck-Boost, Flyback
Voltage - Supply (Vcc/Vdd)
85V ~ 265V
Duty Cycle
69%
Frequency - Switching
66kHz
Fault Protection
Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit, UVLO
Control Features
Frequency Control, Soft Start
Operating Temperature
-40°C ~ 150°C (TJ)
Package / Case
8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package
8-PDIP-C
Mounting Type
Through Hole
Base Product Number
LNK3209
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
596-LNK3209P
Standard Package
50
