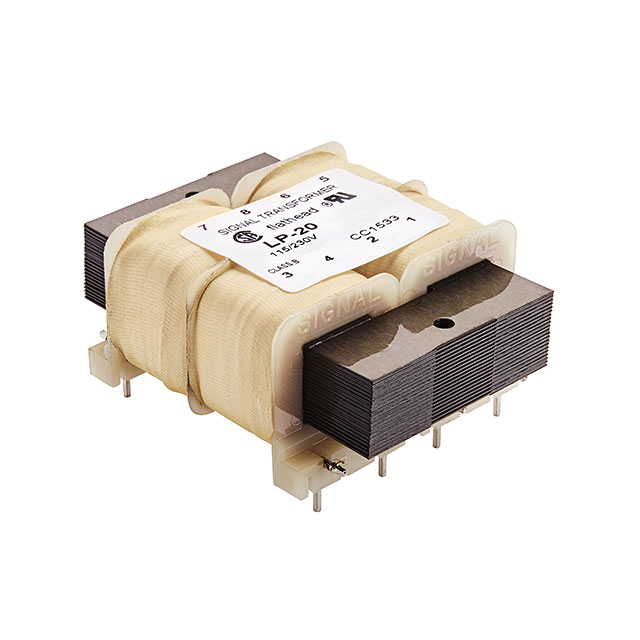

LP-40-600 Signal Transformer
Favorite
Compare
Manufacturer:
Signal Transformer
MFR Product Number:
LP-40-600
Product Number:
LP-40-600
MFR Standard Lead Time:
18 Weeks
Package/Case:
Detailed Description:
PWR XFMR SEMI-TORO 24VA TH
Datasheet:
Descnt:
In Stock
337
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Signal Transformer
Series
LP
Packaging
Bulk
Part Status
Active
Type
Semi-Toroidal
Voltage - Primary
115V, 230V
Voltage - Secondary (Full Load)
Parallel 20V, Series 40V
Current - Output (Max)
Parallel 1.2A, Series 600mA
Primary Winding(s)
Dual
Secondary Winding(s)
Dual
Center Tap
No
Power - Max
24VA
Mounting Type
Through Hole
Termination Style
PC Pin
Size / Dimension
72.90mm L x 57.20mm W
Height - Seated (Max)
31.80mm
Voltage - Isolation
1500Vrms
Weight
0.938 lb (425.47 g)
Documents & Media
Datasheets
LP Series Datasheet
Power Xfrmr, Hi Freq Magnetics Catalog
Video File
What are Transformers? How Do They Work? - Another Teaching Moment
How to Connect Series and Parallel Transformers
Environmental Information
Signal Transformer REACH
RoHS EU Declaration Signal Transformer
RoHS EU Declaration Signal Transformer
Product Drawings
LP Series Bottom
LP Series Side
LP Series Schematic
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
50
