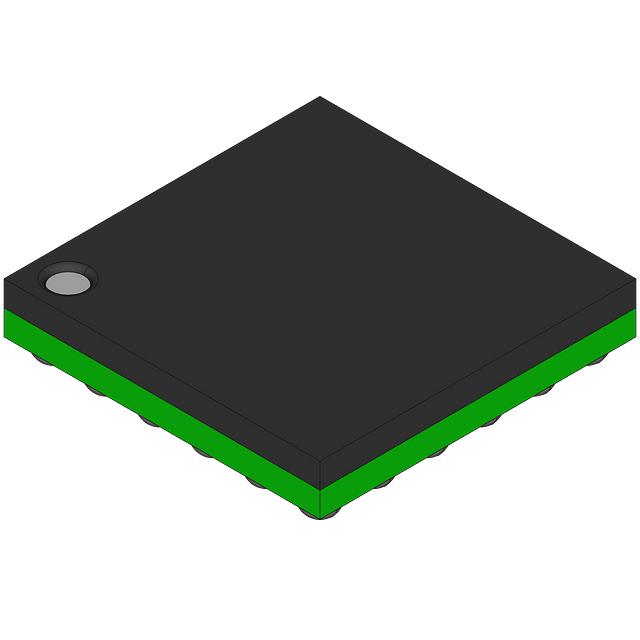

LP39542TLX/NOPB National Semiconductor
Favorite
Compare
Manufacturer:
National Semiconductor
MFR Product Number:
LP39542TLX/NOPB
Product Number:
LP39542TLX-NOPB
MFR Standard Lead Time:
Package/Case:
36-WFBGA
Detailed Description:
IC LED DRV RGLTR PWM 36USMD
Datasheet:
Descnt:
LED Driver IC 13 Output DC DC Regulator Step-Up (Boost) PWM Dimming 900mA (Switch) 36-uSMD
In Stock
11000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
National Semiconductor
Series
-
Packaging
Bulk
Part Status
Active
Type
DC DC Regulator
Topology
Step-Up (Boost)
Internal Switch(s)
Yes
Number of Outputs
13
Voltage - Supply (Min)
3V
Voltage - Supply (Max)
5.5V
Voltage - Output
4V ~ 5.3V
Current - Output / Channel
900mA (Switch)
Frequency
2MHz
Dimming
PWM
Applications
Backlight, Camera Flash
Operating Temperature
-30°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
36-WFBGA
Supplier Device Package
36-uSMD
Base Product Number
LP39542
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
123
