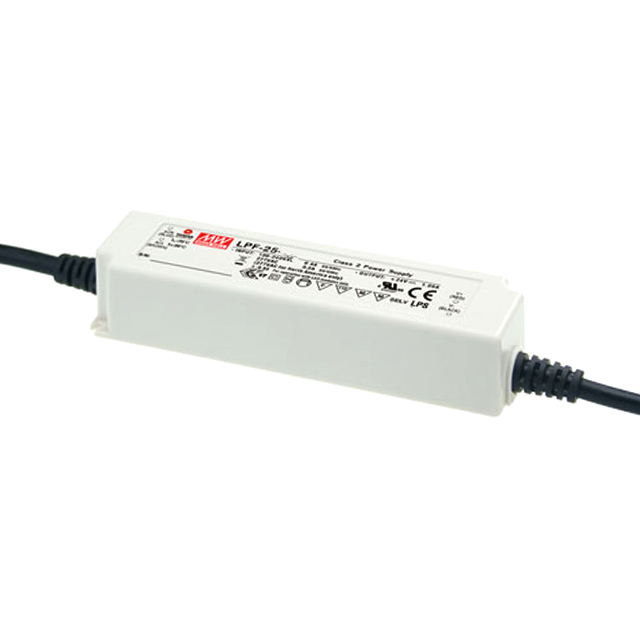

LPF-25-20 MEAN WELL USA Inc.
Favorite
Compare
Manufacturer:
MEAN WELL USA Inc.
MFR Product Number:
LPF-25-20
Product Number:
LPF-25-20
MFR Standard Lead Time:
12 Weeks
Package/Case:
Detailed Description:
LED DVR CC/CV AC/DC 11-20V 1.25A
Datasheet:
Descnt:
1.25A 11 ~ 20V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
MEAN WELL USA Inc.
Series
LPF-25 (25W)
Packaging
Box
Part Status
Active
DigiKey Programmable
Not Verified
Type
Constant Current, Voltage
Topology
AC DC Converter
Number of Outputs
1
Voltage - Input (Min)
90VAC
Voltage - Input (Max)
305VAC
Voltage - Output
11 ~ 20V
Current - Output (Max)
1.25A
Power (Watts)
25 W
Voltage - Isolation
3.75 kV
Dimming
-
Features
OCP, OTP, OVP, SCP
Ratings
IP67
Operating Temperature
-35°C ~ 70°C
Efficiency
86%
Termination Style
Wire Leads
Size / Dimension
5.83" L x 1.57" W x 1.26" H (148.0mm x 40.0mm x 32.0mm)
Approval Agency
CB, CCC, CE, cURus, ENEC, PSE
Mounting Type
Chassis Mount
Base Product Number
LPF-25
Documents & Media
Datasheets
Environmental Information
Mean Well USA RoHS Cert
Mean Well USA REACH
PCN Design/Specification
LPF series PSE Certificate upgrade 03/FEB/2020
label marking chg 29/DEC/2020
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.40.9510
-
Additional Resources
Other Names
Standard Package
40
