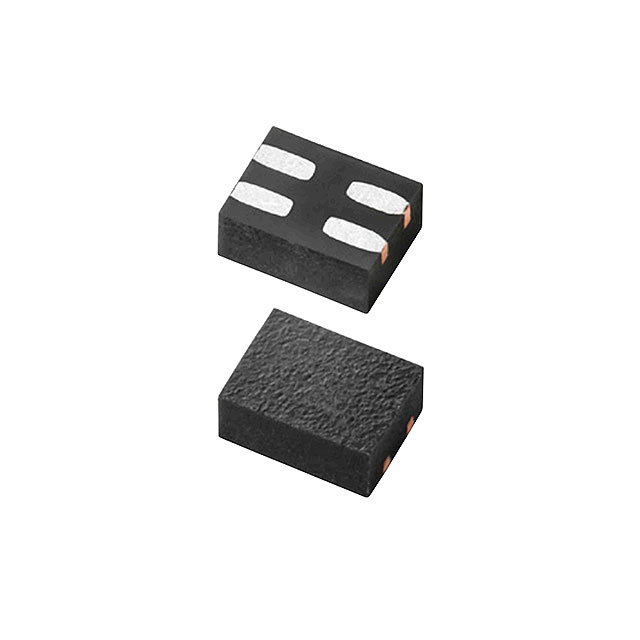

LS0504EDD12 Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
LS0504EDD12
Product Number:
LS0504EDD12
MFR Standard Lead Time:
21 Weeks
Package/Case:
4-UDFN
Detailed Description:
5V, 4A LOW RON LOAD SWITCH
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 4A 4-DFN (1.2x1.6)
In Stock
2854
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Littelfuse Inc.
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
1.8V ~ 5.5V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
4A
Rds On (Typ)
26mOhm
Input Type
Non-Inverting
Features
Load Discharge, Slew Rate Controlled
Fault Protection
Current Limiting (Adjustable), Over Temperature, Over Voltage, Short Circuit, UVLO
Operating Temperature
-40°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
4-DFN (1.2x1.6)
Package / Case
4-UDFN
Base Product Number
LS0504
Documents & Media
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
3 (168 Hours)
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
