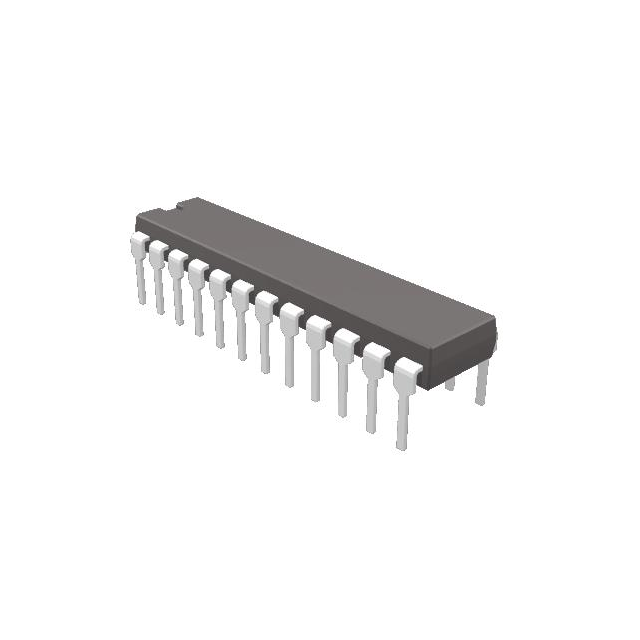

LS8397 LSI/CSI
Favorite
Compare
Manufacturer:
LSI/CSI
MFR Product Number:
LS8397
Product Number:
LS8397
MFR Standard Lead Time:
Package/Case:
24-DIP (0.600\, 15.24mm)
Detailed Description:
STEPPER MOTOR CONTROLLER
Datasheet:
Descnt:
Bipolar, Unipolar Motor Driver Power MOSFET PWM 24-DIP
In Stock
348
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
LSI/CSI
Series
-
Packaging
Tube
Part Status
Active
Motor Type - Stepper
Bipolar, Unipolar
Motor Type - AC, DC
-
Function
Controller - Commutation, Direction Management
Output Configuration
Half Bridge (2)
Interface
PWM
Technology
Power MOSFET
Step Resolution
1, 1/2
Applications
General Purpose
Current - Output
-
Voltage - Supply
4.75V ~ 7V
Voltage - Load
-
Operating Temperature
-40°C ~ 150°C (TJ)
Mounting Type
Through Hole
Package / Case
24-DIP (0.600", 15.24mm)
Supplier Device Package
24-DIP
Base Product Number
LS8397
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
ECCN
EAR99
HTSUS
8542.39.0000
Additional Resources
Other Names
2808-LS8397
Standard Package
15
