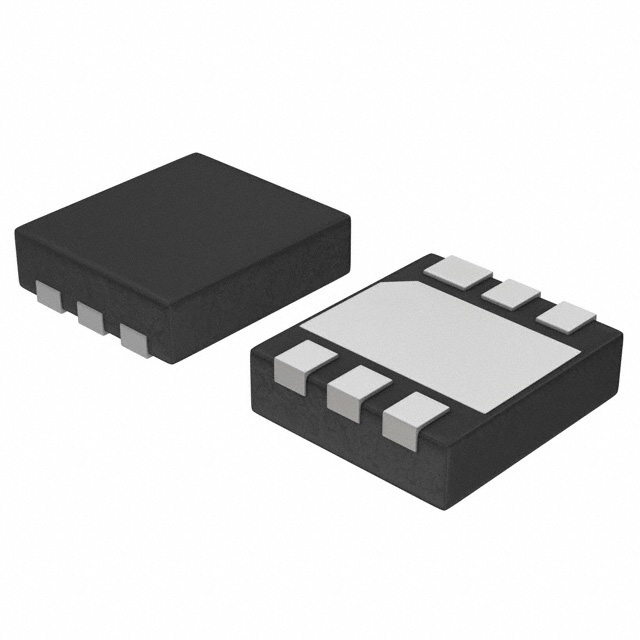

LV52205MUTBG onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
LV52205MUTBG
Product Number:
LV52205MUTBG
MFR Standard Lead Time:
Package/Case:
6-UDFN Exposed Pad
Detailed Description:
IC LED DRV RGLTR PWM 700MA 6UDFN
Datasheet:
Descnt:
LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM Dimming 700mA (Switch) 6-UDFN (2x2)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Obsolete
Type
DC DC Regulator
Topology
Step-Up (Boost)
Internal Switch(s)
Yes
Number of Outputs
1
Voltage - Supply (Min)
2.7V
Voltage - Supply (Max)
5.5V
Voltage - Output
-
Current - Output / Channel
700mA (Switch)
Frequency
600kHz
Dimming
PWM
Applications
Backlight
Operating Temperature
-30°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
6-UDFN Exposed Pad
Supplier Device Package
6-UDFN (2x2)
Base Product Number
LV52205
Documents & Media
Environmental Information
onsemi RoHS
onsemi REACH
Material Declaration LV52205MUTBG
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
