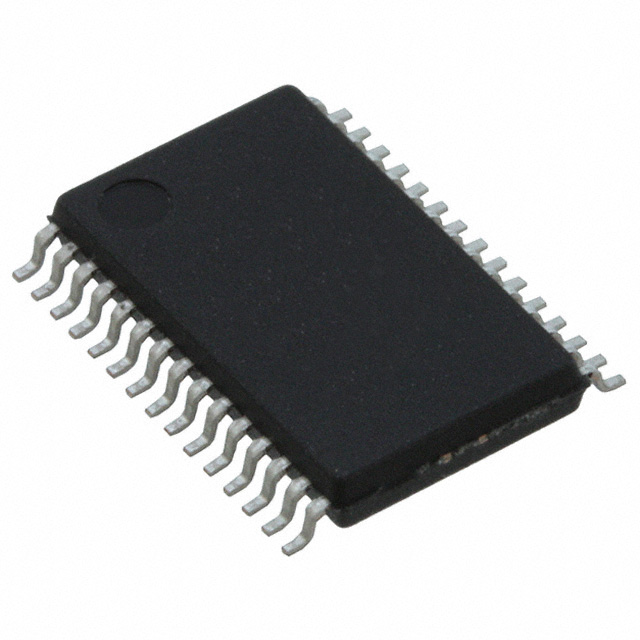

LV8136V-TLM-H onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
LV8136V-TLM-H
Product Number:
LV8136V-TLM-H
MFR Standard Lead Time:
Package/Case:
30-LSSOP (0.220\, 5.60mm Width)
Detailed Description:
IC MOTOR DRVR 9.5V-16.5V 30SSOP
Datasheet:
Descnt:
Motor Driver Bi-CMOS Parallel 30-SSOP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Motor Type - Stepper
-
Motor Type - AC, DC
Brushless DC (BLDC)
Function
Controller - Commutation, Direction Management
Output Configuration
Pre-Driver - Half Bridge (3)
Interface
Parallel
Technology
Bi-CMOS
Step Resolution
-
Applications
Appliance
Current - Output
-
Voltage - Supply
9.5V ~ 16.5V
Voltage - Load
-
Operating Temperature
-40°C ~ 105°C (TA)
Mounting Type
Surface Mount
Package / Case
30-LSSOP (0.220", 5.60mm Width)
Supplier Device Package
30-SSOP
Base Product Number
LV8136
Documents & Media
Datasheets
LV8136V
LV8136V
Product Training Modules
Motor Driver in White Goods Applications
Cooling Fan Motor Drivers
Environmental Information
PCN Design/Specification
Lead Frame Material Chg 21/Jul/2016
Material Chg 21/Jan/2016
HTML Datasheet
LV8136V
LV8136V
-
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
1,000
