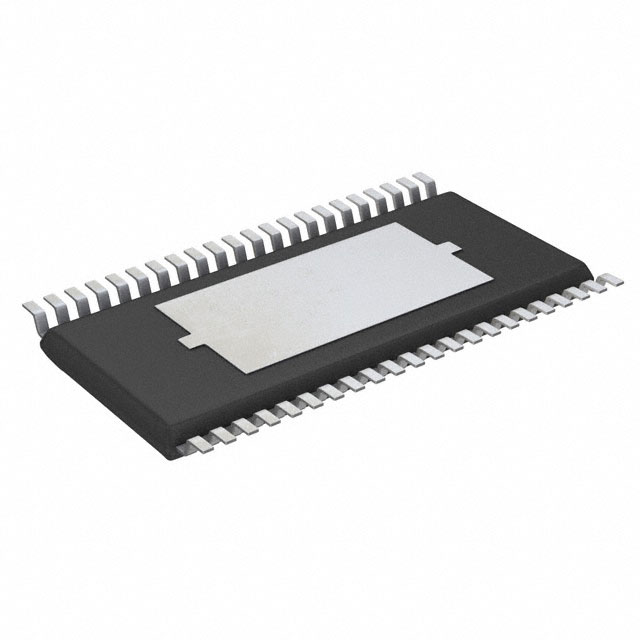

LV8729V-TLM-H onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
LV8729V-TLM-H
Product Number:
LV8729V-TLM-H
MFR Standard Lead Time:
Package/Case:
44-LSSOP (0.220\, 5.60mm Width) Exposed Pad
Detailed Description:
IC MTR DRVR BIPOLAR 0-5V 44SSOPK
Datasheet:
Descnt:
Bipolar Motor Driver BiCDMOS Parallel 44-SSOPK-EP
In Stock
53
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Obsolete
Motor Type - Stepper
Bipolar
Motor Type - AC, DC
-
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Half Bridge (4)
Interface
Parallel
Technology
BiCDMOS
Step Resolution
1 ~ 1/128
Applications
General Purpose
Current - Output
1.8A
Voltage - Supply
0V ~ 5V
Voltage - Load
9V ~ 32V
Operating Temperature
-30°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
44-LSSOP (0.220", 5.60mm Width) Exposed Pad
Supplier Device Package
44-SSOPK-EP
Base Product Number
LV8729
Documents & Media
Environmental Information
onsemi RoHS
Material Declaration LV8729V-TLM-H
PCN Design/Specification
Qual Vehicle Corr 14/Jan/2016
Copper Wire Conversion/Mold Compound Chg 7/Dec/2015
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,000
