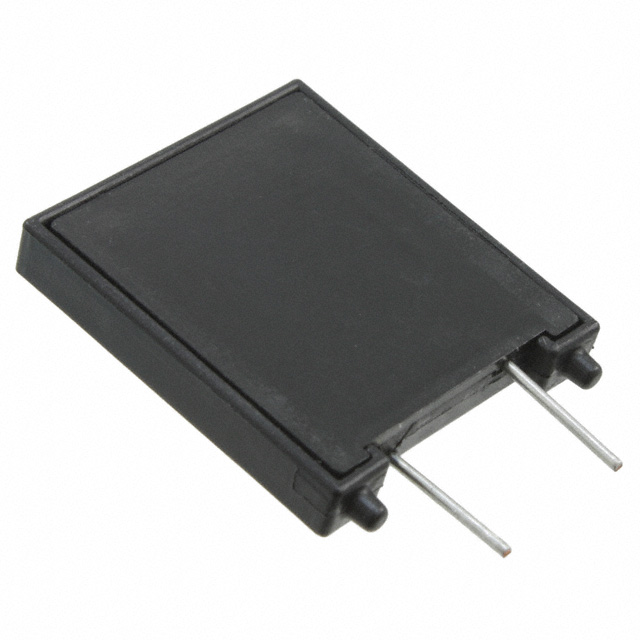

LVB125 Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
LVB125
Product Number:
LVB125
MFR Standard Lead Time:
Package/Case:
Radial, Disc
Detailed Description:
PTC RESET FUSE 240V 1.25A RADIAL
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 240V 1.25 A Ih Through Hole Radial, Disc
In Stock
2
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Littelfuse Inc.
Series
PolySwitch®, LVB
Packaging
Bulk
Part Status
Obsolete
Type
Polymeric
Voltage - Max
240V
Current - Hold (Ih) (Max)
1.25 A
Current - Trip (It)
2.5 A
Current - Max
12.5 A
Time to Trip
5 s
Resistance - Initial (Ri) (Min)
152 mOhms
Resistance - Post Trip (R1) (Max)
482 mOhms
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Through Hole
Package / Case
Radial, Disc
Size / Dimension
0.984" L x 0.175" W (25.00mm x 4.40mm)
Height - Seated (Max)
1.071" (27.20mm)
Thickness (Max)
-
Lead Spacing
0.400" (10.15mm)
Approval Agency
UL
-
Documents & Media
Datasheets
LVB125 Spec
PolySwitch, Line Voltage Catalog
Video File
Building Automation – Protect/Sense/Control
Basics of NTC and PTC Thermistors - Another Teaching Moment
Featured Product
LVB125 PolySwitch PTC Devices
Innovative Circuit Protection Solutions
HTML Datasheet
LVB125 Spec
PolySwitch, Line Voltage Catalog
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8533.40.8070
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
-
Additional Resources
Other Names
Standard Package
250
