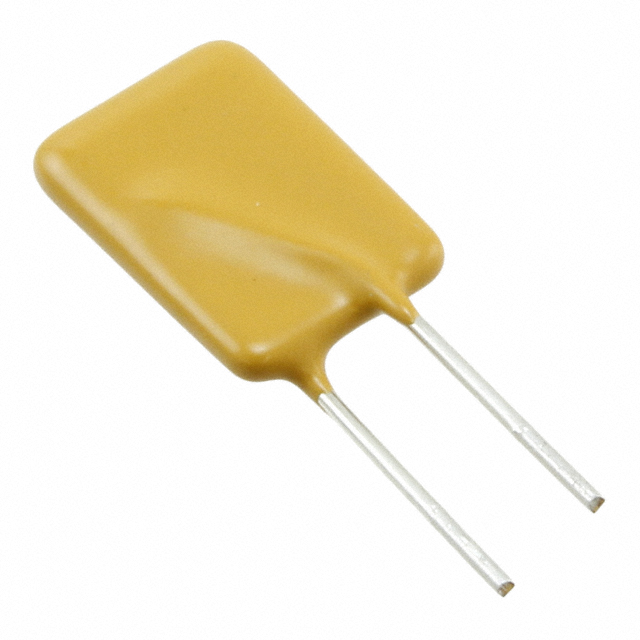

LVR075S-240 Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
LVR075S-240
Product Number:
LVR075S-240
MFR Standard Lead Time:
15 Weeks
Package/Case:
Radial, Disc
Detailed Description:
PTC RESET FUSE 240V 750MA RADIAL
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 240V (265V Int) 750 mA Ih Through Hole Radial, Disc
In Stock
13868
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Littelfuse Inc.
Series
PolySwitch®, LVR
Packaging
Bulk
Part Status
Active
Type
Polymeric
Voltage - Max
240V (265V Int)
Current - Hold (Ih) (Max)
750 mA
Current - Trip (It)
1.5 A
Current - Max
7.5 A
Time to Trip
18 s
Resistance - Initial (Ri) (Min)
316 mOhms
Resistance - Post Trip (R1) (Max)
839 mOhms
Operating Temperature
-20°C ~ 85°C
Ratings
-
Mounting Type
Through Hole
Package / Case
Radial, Disc
Size / Dimension
0.450" L x 0.189" W (11.43mm x 4.80mm)
Height - Seated (Max)
0.921" (23.40mm)
Thickness (Max)
-
Lead Spacing
0.200" (5.08mm)
Approval Agency
CQC, CSA, TUV, UL
-
Documents & Media
Datasheets
LVR075S-240 Spec
PolySwitch, Line Voltage Catalog
Video File
Building Automation – Protect/Sense/Control
Basics of NTC and PTC Thermistors - Another Teaching Moment
Featured Product
PolySwitch LVR Devices
Innovative Circuit Protection Solutions
HTML Datasheet
LVR075S-240 Spec
PolySwitch, Line Voltage Catalog
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.40.8070
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
Additional Resources
Other Names
Standard Package
500
