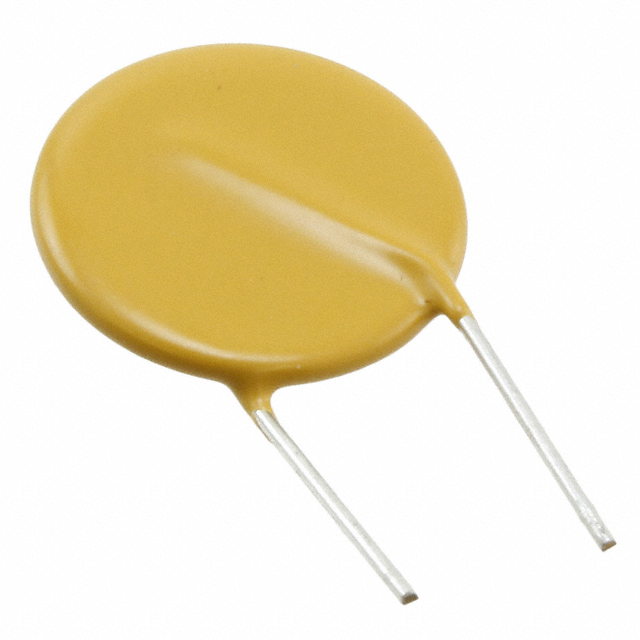

LVR125S-240 Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
LVR125S-240
Product Number:
LVR125S-240
MFR Standard Lead Time:
15 Weeks
Package/Case:
Radial, Disc
Detailed Description:
PTC RESET FUSE 240V 1.25A RADIAL
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 240V (265V Int) 1.25 A Ih Through Hole Radial, Disc
In Stock
7788
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Littelfuse Inc.
Series
PolySwitch®, LVR
Packaging
Bulk
Part Status
Active
Type
Polymeric
Voltage - Max
240V (265V Int)
Current - Hold (Ih) (Max)
1.25 A
Current - Trip (It)
2.5 A
Current - Max
12.5 A
Time to Trip
23 s
Resistance - Initial (Ri) (Min)
165 mOhms
Resistance - Post Trip (R1) (Max)
440 mOhms
Operating Temperature
-20°C ~ 85°C
Ratings
-
Mounting Type
Through Hole
Package / Case
Radial, Disc
Size / Dimension
0.835" Dia x 0.209" T (21.20mm x 5.30mm)
Height - Seated (Max)
1.079" (27.40mm)
Thickness (Max)
-
Lead Spacing
0.400" (10.15mm)
Approval Agency
CQC, CSA, TUV, UL
-
Documents & Media
Datasheets
LVR125S-240 Spec
PolySwitch, Line Voltage Catalog
Video File
Building Automation – Protect/Sense/Control
Basics of NTC and PTC Thermistors - Another Teaching Moment
Featured Product
PolySwitch LVR Devices
Innovative Circuit Protection Solutions
HTML Datasheet
LVR125S-240 Spec
PolySwitch, Line Voltage Catalog
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.40.8070
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
Additional Resources
Other Names
Standard Package
250
