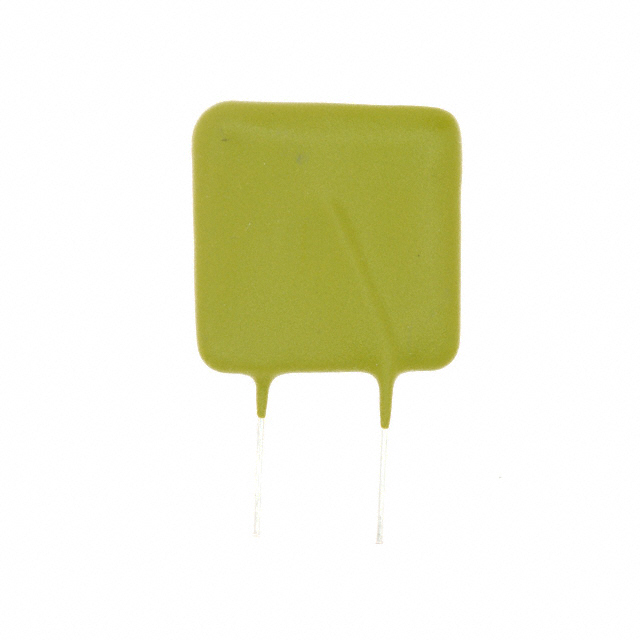

LVR200S Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
LVR200S
Product Number:
LVR200S
MFR Standard Lead Time:
Package/Case:
Radial, Disc
Detailed Description:
PTC RESET FUSE 240V 2A RADIAL
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 240V (265V Int) 2 A Ih Through Hole Radial, Disc
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Littelfuse Inc.
Series
PolySwitch®, LVR
Packaging
Bulk
Part Status
Obsolete
Type
Polymeric
Voltage - Max
240V (265V Int)
Current - Hold (Ih) (Max)
2 A
Current - Trip (It)
4 A
Current - Max
20 A
Time to Trip
28 s
Resistance - Initial (Ri) (Min)
89 mOhms
Resistance - Post Trip (R1) (Max)
221 mOhms
Operating Temperature
-20°C ~ 85°C
Ratings
-
Mounting Type
Through Hole
Package / Case
Radial, Disc
Size / Dimension
0.980" L x 0.240" W (24.90mm x 6.10mm)
Height - Seated (Max)
1.331" (33.80mm)
Thickness (Max)
-
Lead Spacing
0.400" (10.15mm)
Approval Agency
CQC, CSA, TUV, UL
-
Documents & Media
Datasheets
LVR200S Spec
PolySwitch, Line Voltage Catalog
Video File
Building Automation – Protect/Sense/Control
Basics of NTC and PTC Thermistors - Another Teaching Moment
Featured Product
PolySwitch LVR Devices
Innovative Circuit Protection Solutions
PCN Obsolescence/ EOL
LVRLyyyS-(1) 28/Jan/2013
Multiple Devices 24/Aug/2020
HTML Datasheet
LVR200S Spec
PolySwitch, Line Voltage Catalog
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
ECCN
EAR99
HTSUS
8533.40.8070
Additional Resources
Other Names
RF0630-000
Standard Package
250
