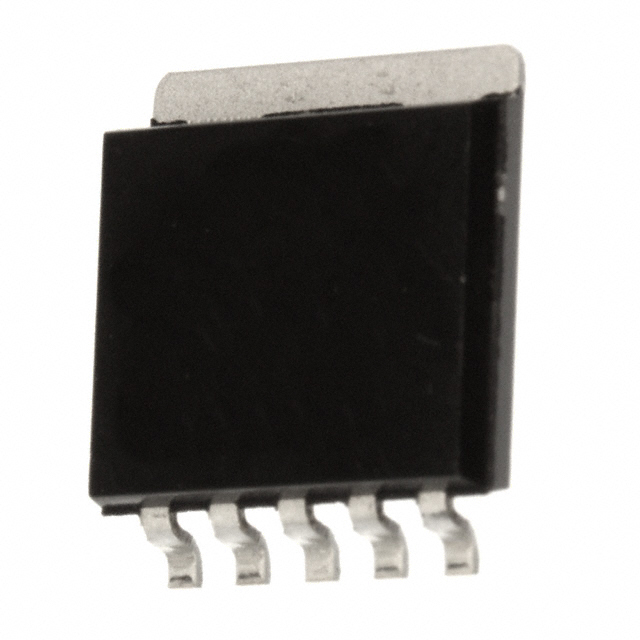

LX8816-04CDF Microsemi Corporation
Favorite
Compare
Manufacturer:
Microsemi Corporation
MFR Product Number:
LX8816-04CDF
Product Number:
LX8816-04CDF
MFR Standard Lead Time:
Package/Case:
SPAK-5 (5 Leads + Tab)
Detailed Description:
IC REG LIN POS ADJ 1A/1A 5SPAK
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable (Fixed) 2 Output 1A, 1A 5-SPAK
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Microsemi Corporation
Series
-
Packaging
Bulk
Part Status
Obsolete
Output Configuration
Positive
Output Type
Adjustable (Fixed)
Number of Regulators
2
Voltage - Input (Max)
10V
Voltage - Output (Min/Fixed)
1.25V (3.3V)
Voltage - Output (Max)
5.5V
Voltage Dropout (Max)
1.3V 1A, 1.3V 1A
Current - Output
1A, 1A
Current - Quiescent (Iq)
3.8 mA
Current - Supply (Max)
6 A
PSRR
75dB (120Hz)
Control Features
-
Protection Features
Over Current, Over Temperature
Operating Temperature
0°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
SPAK-5 (5 Leads + Tab)
Supplier Device Package
5-SPAK
Base Product Number
LX8816
Documents & Media
Environmental Information
Microchip RoHS
Microchip REACH
Microchip CA Prop65
-
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
2,000
