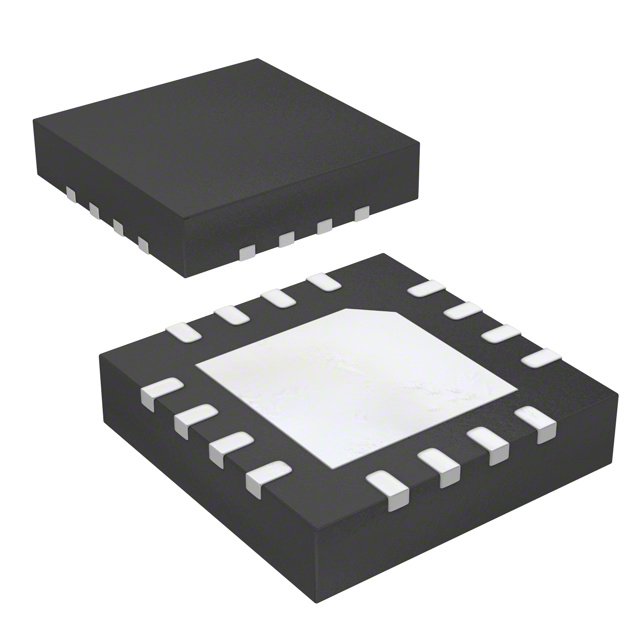

MC34933EP NXP USA Inc.
Favorite
Compare
Manufacturer:
NXP USA Inc.
MFR Product Number:
MC34933EP
Product Number:
MC34933EP
MFR Standard Lead Time:
Package/Case:
16-UFQFN Exposed Pad
Detailed Description:
IC MTR DRV BIPLR 2.7-5.5V 16UQFN
Datasheet:
Descnt:
Bipolar Motor Driver Power MOSFET Parallel 16-UQFN-EP (3x3)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
NXP USA Inc.
Series
-
Packaging
Tray
Part Status
Obsolete
Motor Type - Stepper
Bipolar
Motor Type - AC, DC
Brushed DC
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Half Bridge (4)
Interface
Parallel
Technology
Power MOSFET
Step Resolution
-
Applications
General Purpose
Current - Output
1A
Voltage - Supply
2.7V ~ 5.5V
Voltage - Load
2V ~ 7V
Operating Temperature
-20°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Package / Case
16-UFQFN Exposed Pad
Supplier Device Package
16-UQFN-EP (3x3)
Base Product Number
MC34933
Documents & Media
PCN Design/Specification
PCN Packaging
All Dev Label Update 15/Dec/2020
Mult Dev Pkg Seal 15/Dec/2020
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,450
