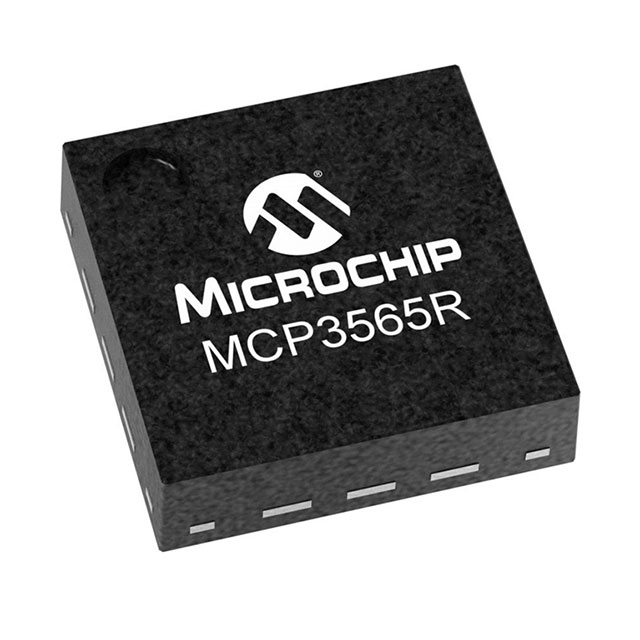

MCP3565RT-E/SFX Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
MCP3565RT-E/SFX
Product Number:
MCP3565RT-E-SFX
MFR Standard Lead Time:
8 Weeks
Package/Case:
12-UFQFN Exposed Pad
Detailed Description:
IC ADC 24BIT SIGMA-DELTA 12UQFN
Datasheet:
Descnt:
24 Bit Analog to Digital Converter 1, 2 Input 1 Sigma-Delta 12-UQFN (2x2)
In Stock
7730
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Microchip Technology
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Number of Bits
24
Sampling Rate (Per Second)
153.6k
Number of Inputs
1, 2
Input Type
Differential, Single Ended
Data Interface
SPI
Configuration
MUX-S/H-ADC
Ratio - S/H:ADC
-
Number of A/D Converters
1
Architecture
Sigma-Delta
Reference Type
External, Internal
Voltage - Supply, Analog
2.7V ~ 3.6V
Voltage - Supply, Digital
1.8V ~ 3.7V
Features
Temperature Sensor, Internal Oscillator
Operating Temperature
-40°C ~ 125°C
Package / Case
12-UFQFN Exposed Pad
Supplier Device Package
12-UQFN (2x2)
Mounting Type
Surface Mount
Base Product Number
MCP3565
Documents & Media
Datasheets
Environmental Information
Microchip RoHS
Microchip REACH
Microchip CA Prop65
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
