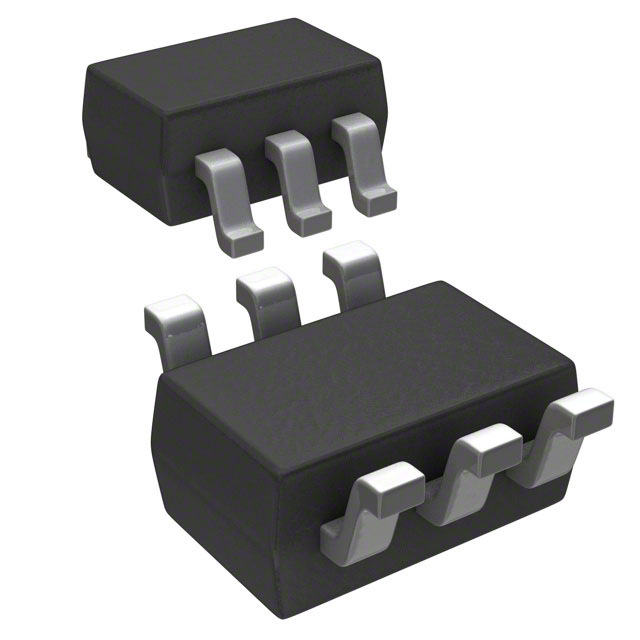

MCP47A1T-A1E/LT Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
MCP47A1T-A1E/LT
Product Number:
MCP47A1T-A1E-LT
MFR Standard Lead Time:
4 Weeks
Package/Case:
6-TSSOP, SC-88, SOT-363
Detailed Description:
IC DAC 6BIT V-OUT SC70-6
Datasheet:
Descnt:
6 Bit Digital to Analog Converter 1 SC-70-6
In Stock
5277
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Microchip Technology
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
DigiKey Programmable
Not Verified
Number of Bits
6
Number of D/A Converters
1
Settling Time
15µs (Typ)
Output Type
Voltage - Buffered
Differential Output
No
Data Interface
I2C
Reference Type
External
Voltage - Supply, Analog
2.7V ~ 5.5V
Voltage - Supply, Digital
1.8V ~ 5.5V
INL/DNL (LSB)
±0.25, ±0.25
Architecture
R-2R
Operating Temperature
-40°C ~ 125°C
Package / Case
6-TSSOP, SC-88, SOT-363
Supplier Device Package
SC-70-6
Mounting Type
Surface Mount
Base Product Number
MCP47A1
-
Documents & Media
Datasheets
Video File
ADC Aspects - Episode 1 - Quantization
ADC Aspects - Episode 3 - Offset and Gain Errors
ADC Aspects - Episode 2 - Linearity (DNL, INL)
Environmental Information
Microchip RoHS
Microchip REACH
Microchip CA Prop65
PCN Packaging
Packing Changes 10/Oct/2016
Label and Packing Changes 23/Sep/2015
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
