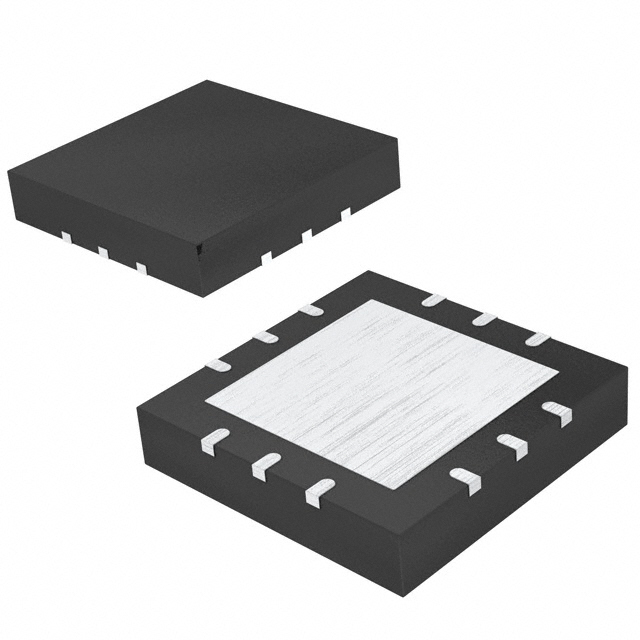

MD1210K6-G Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
MD1210K6-G
Product Number:
MD1210K6-G
MFR Standard Lead Time:
7 Weeks
Package/Case:
12-VQFN Exposed Pad
Detailed Description:
IC GATE DRVR HALF-BRIDGE 12QFN
Datasheet:
Descnt:
Half-Bridge Gate Driver IC Non-Inverting 12-QFN (4x4)
In Stock
12615
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Microchip Technology
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Channel Type
Independent
Number of Drivers
2
Gate Type
N-Channel, P-Channel MOSFET
Voltage - Supply
4.5V ~ 13V
Logic Voltage - VIL, VIH
0.3V, 1.2V
Current - Peak Output (Source, Sink)
2A, 2A
Input Type
Non-Inverting
Rise / Fall Time (Typ)
6ns, 6ns
Operating Temperature
-20°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
12-VQFN Exposed Pad
Supplier Device Package
12-QFN (4x4)
Base Product Number
MD1210
-
Documents & Media
PCN Assembly/Origin
PCN Packaging
Packing Changes 10/Oct/2016
Label and Packing Changes 23/Sep/2015
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
5,000
