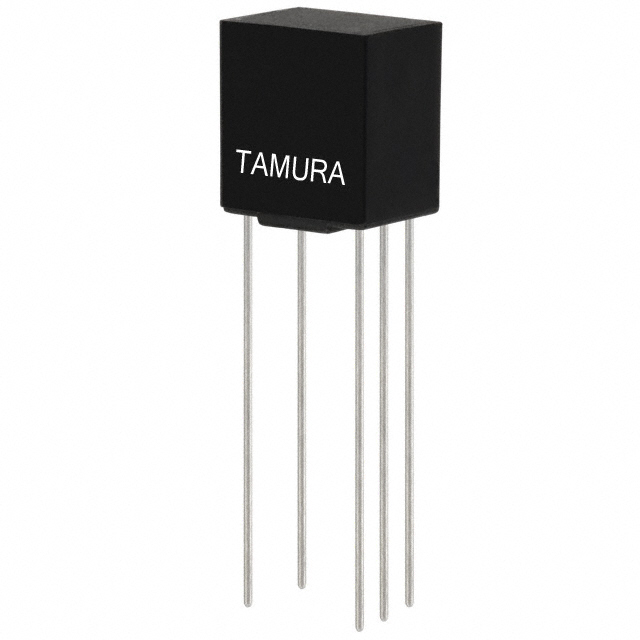

MET-24 Tamura
Favorite
Compare
Manufacturer:
Tamura
MFR Product Number:
MET-24
Product Number:
MET-24
MFR Standard Lead Time:
26 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 1.5KCT / 600 TH
Datasheet:
Descnt:
1.5kCT Impedance Primary Ohms 600 Impedance Secondary Ohms 1.58:1 Audio Transformer 300Hz ~ 100kHz Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Tamura
Series
MET
Packaging
Tube
Part Status
Active
Turns Ratio - Primary:Secondary
1.58:1
Impedance - Primary (Ohms)
1.5kCT
Impedance - Secondary (Ohms)
600
DC Resistance (DCR) - Primary
160Ohm
DC Resistance (DCR) - Secondary
95Ohm
Transformer Type
Data/Voice Coupling
Frequency Range
300Hz ~ 100kHz
Frequency Response
±2dB
Voltage - Isolation
500VRMS 1 Minute
Insertion Loss
2dB Max 1kHz
Return Loss
-
Power Level
50mW
Operating Temperature
-20°C ~ 85°C
Approval Agency
-
Mounting Type
Through Hole
Size / Dimension
0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max)
0.465" (11.80mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8504.31.2000
Additional Resources
Other Names
MET-24-NDR
Standard Package
550
