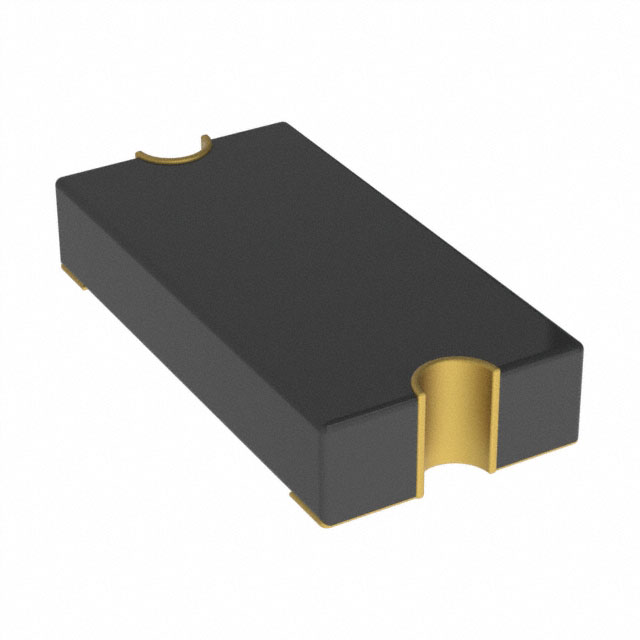

MF-NSMF200-2 Bourns Inc.
Favorite
Compare
Manufacturer:
Bourns Inc.
MFR Product Number:
MF-NSMF200-2
Product Number:
MF-NSMF200-2
MFR Standard Lead Time:
17 Weeks
Package/Case:
1206 (3216 Metric), Concave
Detailed Description:
PTC RESET FUSE 6V 2A 1206
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 6V 2 A Ih Surface Mount 1206 (3216 Metric), Concave
In Stock
21576
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Bourns Inc.
Series
Multifuse®, MF-NSMF
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Polymeric
Voltage - Max
6V
Current - Hold (Ih) (Max)
2 A
Current - Trip (It)
4 A
Current - Max
100 A
Time to Trip
1 s
Resistance - Initial (Ri) (Min)
20 mOhms
Resistance - Post Trip (R1) (Max)
85 mOhms
Operating Temperature
-40°C ~ 85°C
Grade
Automotive
Qualification
AEC-Q200
Ratings
-
Mounting Type
Surface Mount
Package / Case
1206 (3216 Metric), Concave
Size / Dimension
0.128" L x 0.063" W (3.25mm x 1.60mm)
Height - Seated (Max)
-
Thickness (Max)
0.063" (1.60mm)
Lead Spacing
-
Approval Agency
cUL, cURus, TUV
Base Product Number
MF-NSMF
Documents & Media
Datasheets
MF-NSMF Series
Multifuse Product Guide
Product Training Modules
ESD Protection Products
Multifuse® Resettable Fuses
Environmental Information
MF-NSMF Material Declaration
RoHS MF-xxxx Series
Featured Product
Multifuse® and ChipGuard® Circuit Protection Devices for USB 2.0 and USB 3.0
Multifuse® 1206 Size Polymer PTC Resettable Fuses – MF-NSMF Series
Product Drawings
MF-NSMF Series Footprint
MF-(MS,NS)MF 1.60mm Series Side
MF-NSMF200-2 Top
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.40.8070
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
Additional Resources
Other Names
Standard Package
3,000
