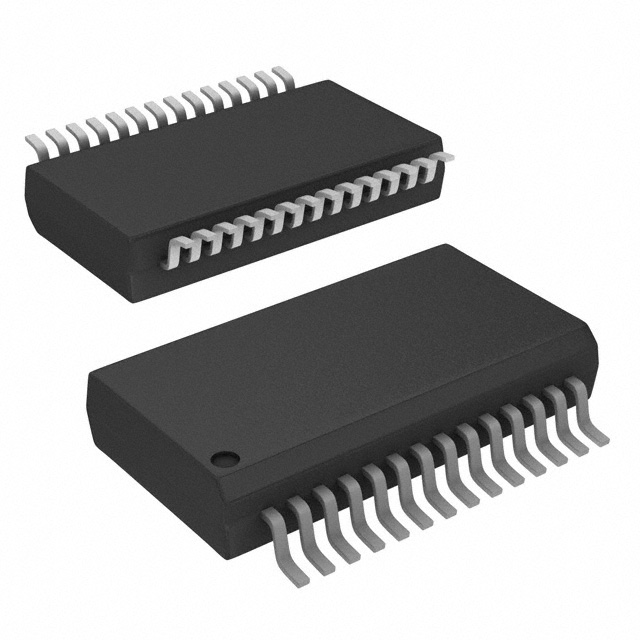

MIC2568-1YSM Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
MIC2568-1YSM
Product Number:
MIC2568-1YSM
MFR Standard Lead Time:
Package/Case:
28-SSOP (0.209\, 5.30mm Width)
Detailed Description:
IC PWR SWITCH N-CHAN 1:1 28SSOP
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 120mA 28-SSOP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Microchip Technology
Series
-
Packaging
Tube
Part Status
Obsolete
Switch Type
PCMCIA Switch
Number of Outputs
4
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
Logic
Voltage - Load
3.3V, 5V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
120mA
Rds On (Typ)
1.4Ohm
Input Type
Non-Inverting
Features
-
Fault Protection
Current Limiting (Fixed), Over Temperature
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
28-SSOP
Package / Case
28-SSOP (0.209", 5.30mm Width)
Base Product Number
MIC2568
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
47
-
