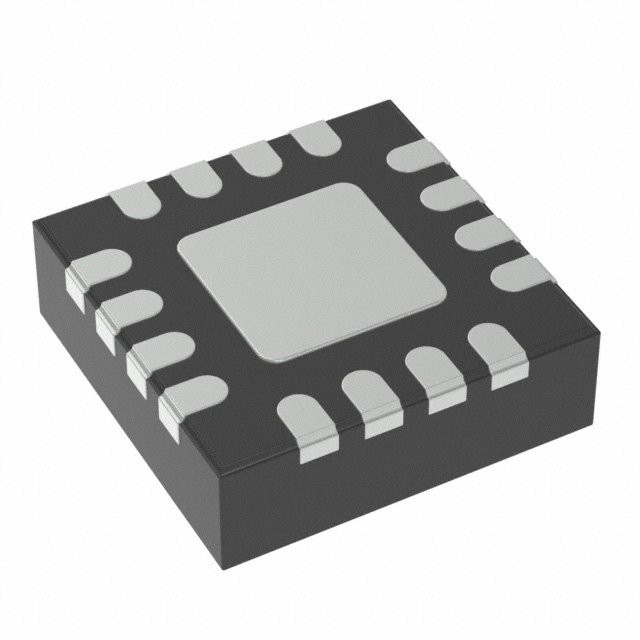

MIC4600YML-T5 Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
MIC4600YML-T5
Product Number:
MIC4600YML-T5
MFR Standard Lead Time:
Package/Case:
16-VFQFN Exposed Pad
Detailed Description:
IC GATE DRVR HALF-BRIDGE 16VQFN
Datasheet:
Descnt:
Half-Bridge Gate Driver IC Non-Inverting 16-VQFN (3x3)
In Stock
450
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Microchip Technology
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Discontinued at Digi-Key
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Channel Type
Independent
Number of Drivers
2
Gate Type
N-Channel MOSFET
Voltage - Supply
4.5V ~ 28V
Logic Voltage - VIL, VIH
0.65V, 1.4V
Current - Peak Output (Source, Sink)
-
Input Type
Non-Inverting
Rise / Fall Time (Typ)
15ns, 13.5ns
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
16-VFQFN Exposed Pad
Supplier Device Package
16-VQFN (3x3)
Base Product Number
MIC4600
-
Documents & Media
PCN Design/Specification
MIC4600YML 02/Dec/2020
MIC4600 26/Jul/2016
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8473.30.1180
-
Additional Resources
Other Names
Standard Package
500
