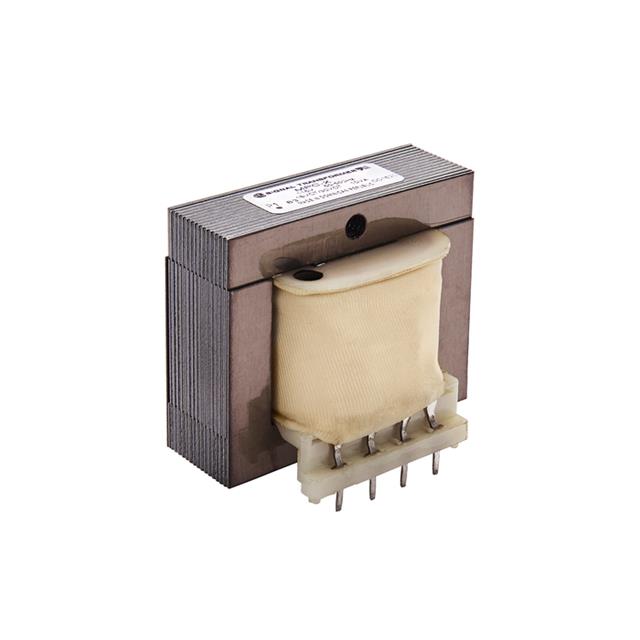

MPC-X-12 Signal Transformer
Favorite
Compare
Manufacturer:
Signal Transformer
MFR Product Number:
MPC-X-12
Product Number:
MPC-X-12
MFR Standard Lead Time:
18 Weeks
Package/Case:
Detailed Description:
PWR XFMR LAMINATED 10VA TH
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Signal Transformer
Series
MPC
Packaging
Bulk
Part Status
Active
Type
Laminated Core
Voltage - Primary
115V
Voltage - Secondary (Full Load)
Parallel 5V, Series 12V
Current - Output (Max)
Parallel 360mA, Series 60mA
Primary Winding(s)
Single
Secondary Winding(s)
Dual
Center Tap
Yes
Power - Max
10VA
Mounting Type
Through Hole
Termination Style
PC Pin
Size / Dimension
47.60mm L x 36.50mm W
Height - Seated (Max)
41.70mm
Voltage - Isolation
1500Vrms
Weight
0.56 lb (254.01 g)
Documents & Media
Datasheets
Environmental Information
Signal Transformer REACH
RoHS EU Declaration Signal Transformer
RoHS EU Declaration Signal Transformer
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Standard Package
50
-
