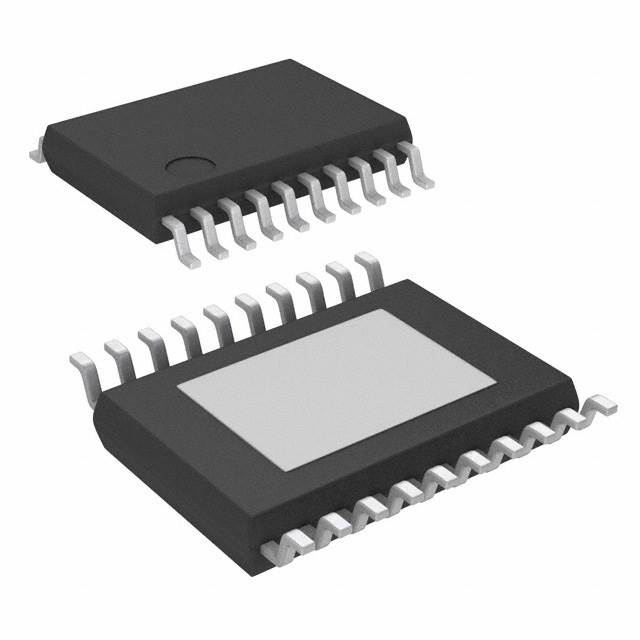

MPC17529EJR2 NXP USA Inc.
Favorite
Compare
Manufacturer:
NXP USA Inc.
MFR Product Number:
MPC17529EJR2
Product Number:
MPC17529EJR2
MFR Standard Lead Time:
Package/Case:
20-TSSOP (0.173\, 4.40mm Width) Exposed Pad
Detailed Description:
IC MTR DRV BIPLR 2.7-5.6V 20SSOP
Datasheet:
Descnt:
Bipolar Motor Driver CMOS Parallel 20-TSSOP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
NXP USA Inc.
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Motor Type - Stepper
Bipolar
Motor Type - AC, DC
Brushed DC
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Half Bridge (4)
Interface
Parallel
Technology
CMOS
Step Resolution
-
Applications
Battery Powered
Current - Output
700mA
Voltage - Supply
2.7V ~ 5.6V
Voltage - Load
2V ~ 6.8V
Operating Temperature
-20°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Package / Case
20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package
20-TSSOP
Base Product Number
MPC17529
Documents & Media
Environmental Information
NXP USA Inc RoHS Cert
NXP USA Inc REACH
PCN Packaging
Automated Packing Implementation 05/Jul/2023
Mult Dev Pkg Seal 15/Dec/2020
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
935316116538
Standard Package
6,000
