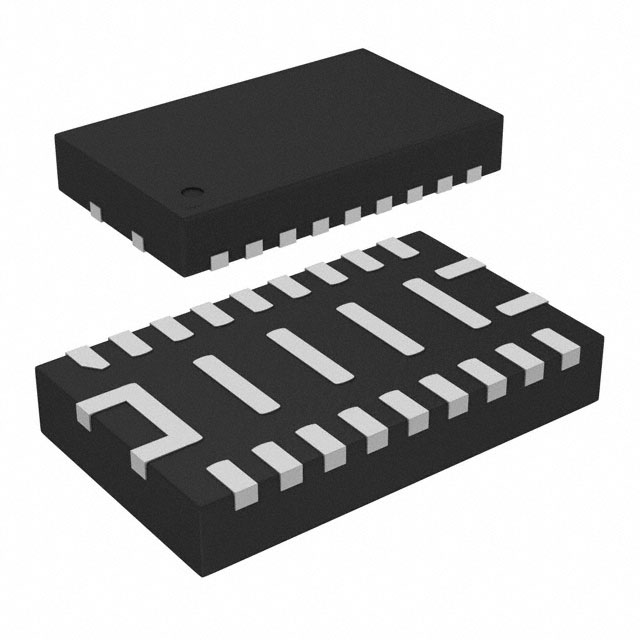

MPQ5069GQV-AEC1-P Monolithic Power Systems Inc.
Favorite
Compare
Manufacturer:
Monolithic Power Systems Inc.
MFR Product Number:
MPQ5069GQV-AEC1-P
Product Number:
MPQ5069GQV-AEC1-P
MFR Standard Lead Time:
20 Weeks
Package/Case:
22-PowerVFQFN
Detailed Description:
7M PROTECTION SWITCH WITH CURREN
Datasheet:
Descnt:
Power Switch/Driver 1:1 15A 22-QFN (3x5)
In Stock
8362
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Monolithic Power Systems Inc.
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
-
Interface
On/Off
Voltage - Load
6V ~ 28V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
15A
Rds On (Typ)
7mOhm
Input Type
Non-Inverting
Features
Load Discharge, Slew Rate Controlled
Fault Protection
Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature
-40°C ~ 125°C (TJ)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount
Supplier Device Package
22-QFN (3x5)
Package / Case
22-PowerVFQFN
Base Product Number
MPQ5069
Documents & Media
Datasheets
Environmental Information
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
500
