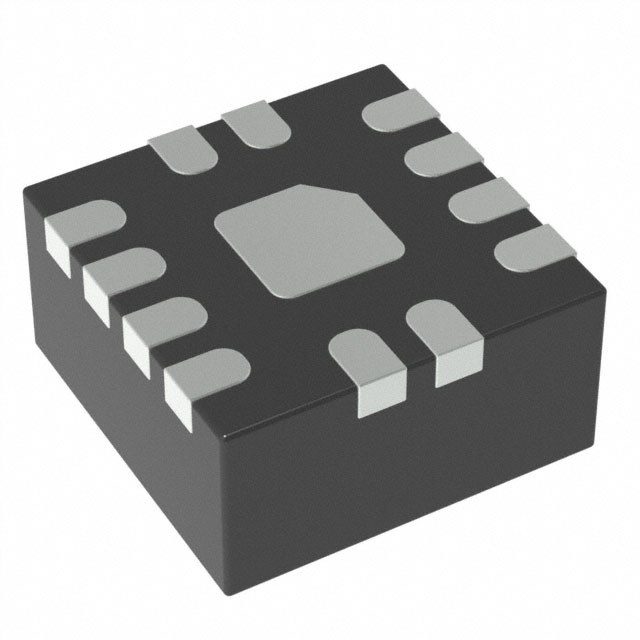

MPQ5072GG-AEC1-Z Monolithic Power Systems Inc.
Favorite
Compare
Manufacturer:
Monolithic Power Systems Inc.
MFR Product Number:
MPQ5072GG-AEC1-Z
Product Number:
MPQ5072GG-AEC1-Z
MFR Standard Lead Time:
16 Weeks
Package/Case:
12-VFQFN Exposed Pad
Detailed Description:
5.5V, 1A LOW RDS(ON) LOAD SWITCH
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 1A 12-QFN (2x2)
In Stock
4664
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Monolithic Power Systems Inc.
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
0.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)
3V ~ 5.5V
Current - Output (Max)
1A
Rds On (Typ)
60mOhm
Input Type
Non-Inverting
Features
Load Discharge, Power Good, Slew Rate Controlled
Fault Protection
Current Limiting (Fixed), Over Temperature, Short Circuit, UVLO
Operating Temperature
-40°C ~ 125°C (TJ)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount
Supplier Device Package
12-QFN (2x2)
Package / Case
12-VFQFN Exposed Pad
Base Product Number
MPQ5072
Documents & Media
Datasheets
Environmental Information
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
5,000
