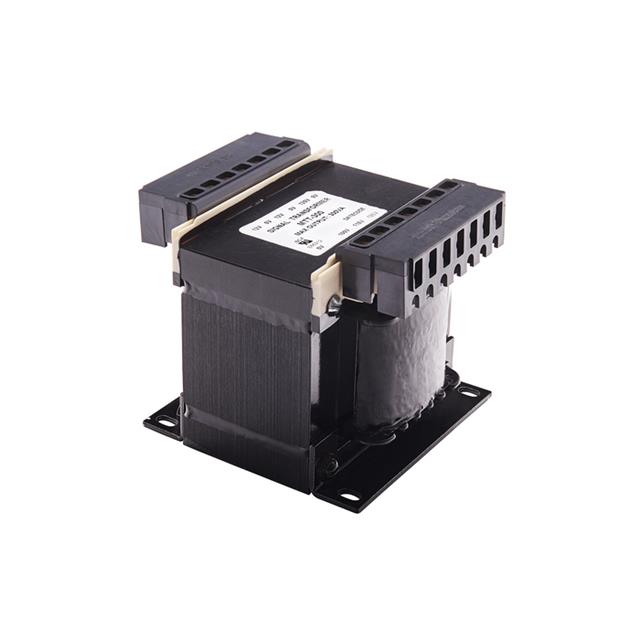

MTT-1000 Signal Transformer
Favorite
Compare
Manufacturer:
Signal Transformer
MFR Product Number:
MTT-1000
Product Number:
MTT-1000
MFR Standard Lead Time:
18 Weeks
Package/Case:
Detailed Description:
PWR XFMR LAMINATED 1000VA CHAS
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Signal Transformer
Series
MTT
Packaging
Bulk
Part Status
Active
Type
Laminated Core
Voltage - Primary
100V, 115V, 120V
Voltage - Secondary (Full Load)
Parallel 12V, Series 24V
Current - Output (Max)
Parallel 83.3A, Series 41.7A
Primary Winding(s)
Single
Secondary Winding(s)
Triple
Center Tap
No
Power - Max
1000VA
Mounting Type
Chassis Mount
Termination Style
Terminal Block
Size / Dimension
179.30mm L x 129.60mm W
Height - Seated (Max)
154.90mm
Voltage - Isolation
4000Vrms
Weight
34 lbs (15.4 kg)
Documents & Media
Datasheets
Environmental Information
Signal Transformer REACH
RoHS EU Declaration Signal Transformer
RoHS EU Declaration Signal Transformer
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.32.0000
-
Additional Resources
Other Names
2266-MTT-1000
Standard Package
1
