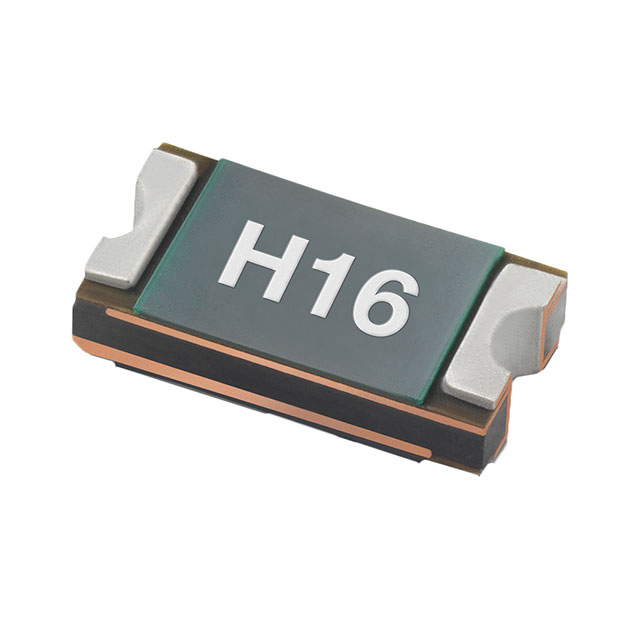

NANOASMDCH016F-2 Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
NANOASMDCH016F-2
Product Number:
NANOASMDCH016F-2
MFR Standard Lead Time:
11 Weeks
Package/Case:
1206 (3216 Metric), Concave
Detailed Description:
PTC RESET FUSE 30V 160MA 1206
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 30V 160 mA Ih Surface Mount 1206 (3216 Metric), Concave
In Stock
39
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Littelfuse Inc.
Series
PolySwitch®, ASMD
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status
Active
Type
Polymeric
Voltage - Max
30V
Current - Hold (Ih) (Max)
160 mA
Current - Trip (It)
800 mA
Current - Max
20 A
Time to Trip
100 ms
Resistance - Initial (Ri) (Min)
700 mOhms
Resistance - Post Trip (R1) (Max)
6 Ohms
Operating Temperature
-40°C ~ 125°C
Grade
Automotive
Qualification
AEC-Q200
Ratings
-
Mounting Type
Surface Mount
Package / Case
1206 (3216 Metric), Concave
Size / Dimension
0.126" L x 0.062" W (3.20mm x 1.58mm)
Height - Seated (Max)
-
Thickness (Max)
0.045" (1.14mm)
Lead Spacing
-
Approval Agency
UL
-
Documents & Media
Datasheets
Video File
Automotive High-Temperature SMD PolySwitch | Datasheet Preview
Basics of NTC and PTC Thermistors - Another Teaching Moment
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.40.8070
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
Additional Resources
Other Names
Standard Package
3,000
