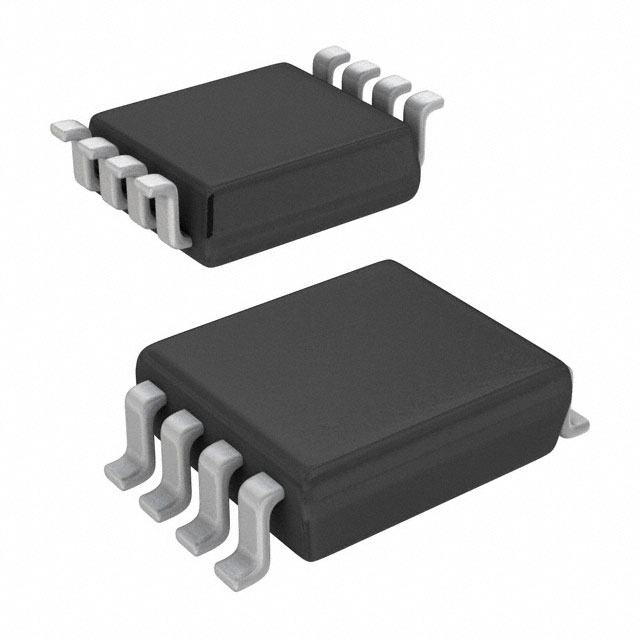

NC7WP32K8X onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
NC7WP32K8X
Product Number:
NC7WP32K8X
MFR Standard Lead Time:
Package/Case:
8-VFSOP (0.091\, 2.30mm Width)
Detailed Description:
IC GATE OR 2CH 2-INP US8
Datasheet:
Descnt:
OR Gate IC 2 Channel US8
In Stock
1165
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
onsemi
Series
7WP
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status
Obsolete
Logic Type
OR Gate
Number of Circuits
2
Number of Inputs
2
Features
-
Voltage - Supply
0.9V ~ 3.6V
Current - Quiescent (Max)
900 nA
Current - Output High, Low
2.6mA, 2.6mA
Input Logic Level - Low
0.7V ~ 0.9V
Input Logic Level - High
1.6V ~ 2.1V
Max Propagation Delay V, Max CL
7ns 3.3V, 30pF
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Supplier Device Package
US8
Package / Case
8-VFSOP (0.091", 2.30mm Width)
Base Product Number
7WP32
-
Documents & Media
PCN Design/Specification
Logo 17/Aug/2017
Mult Dev DS Update 16/Jun/2020
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
